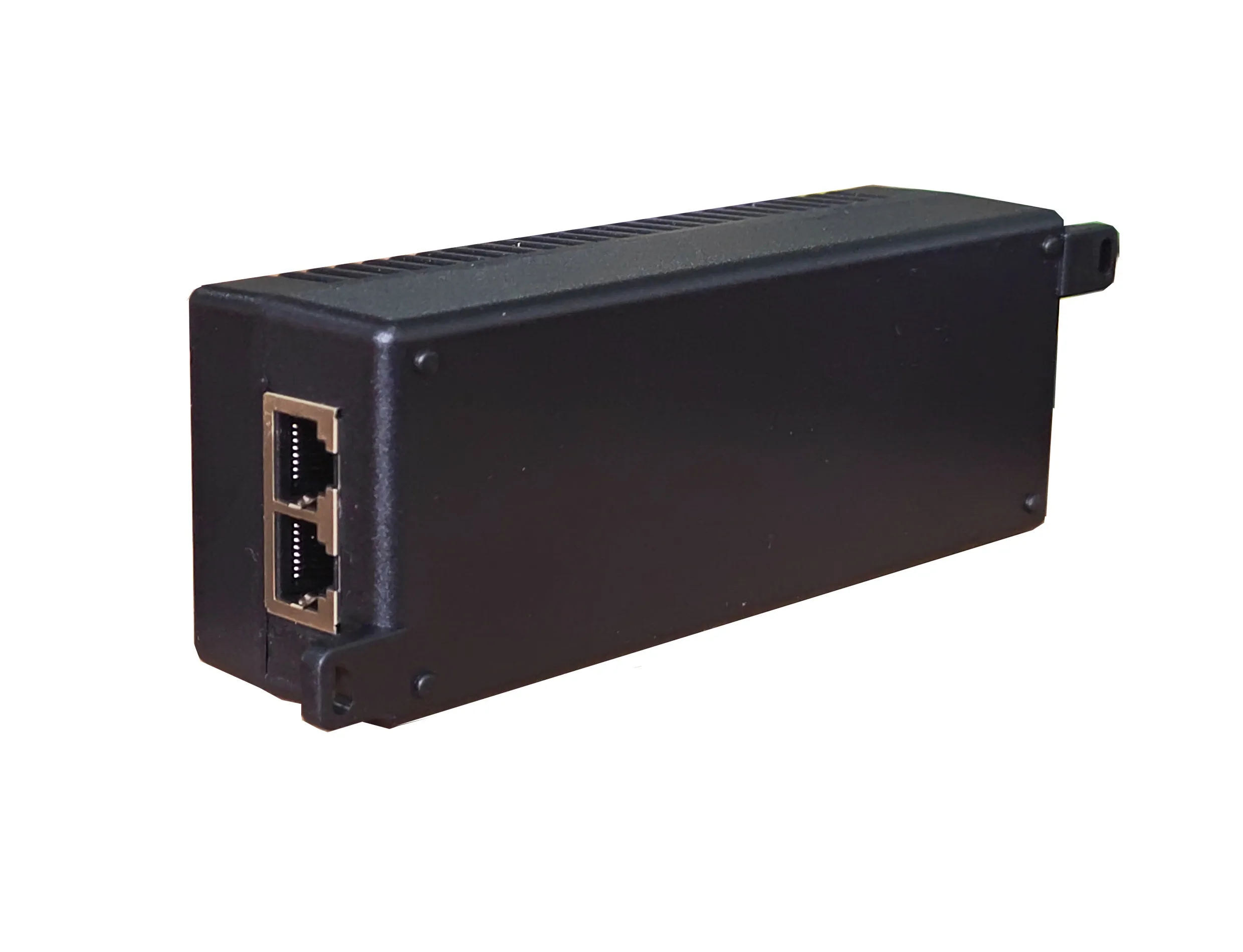

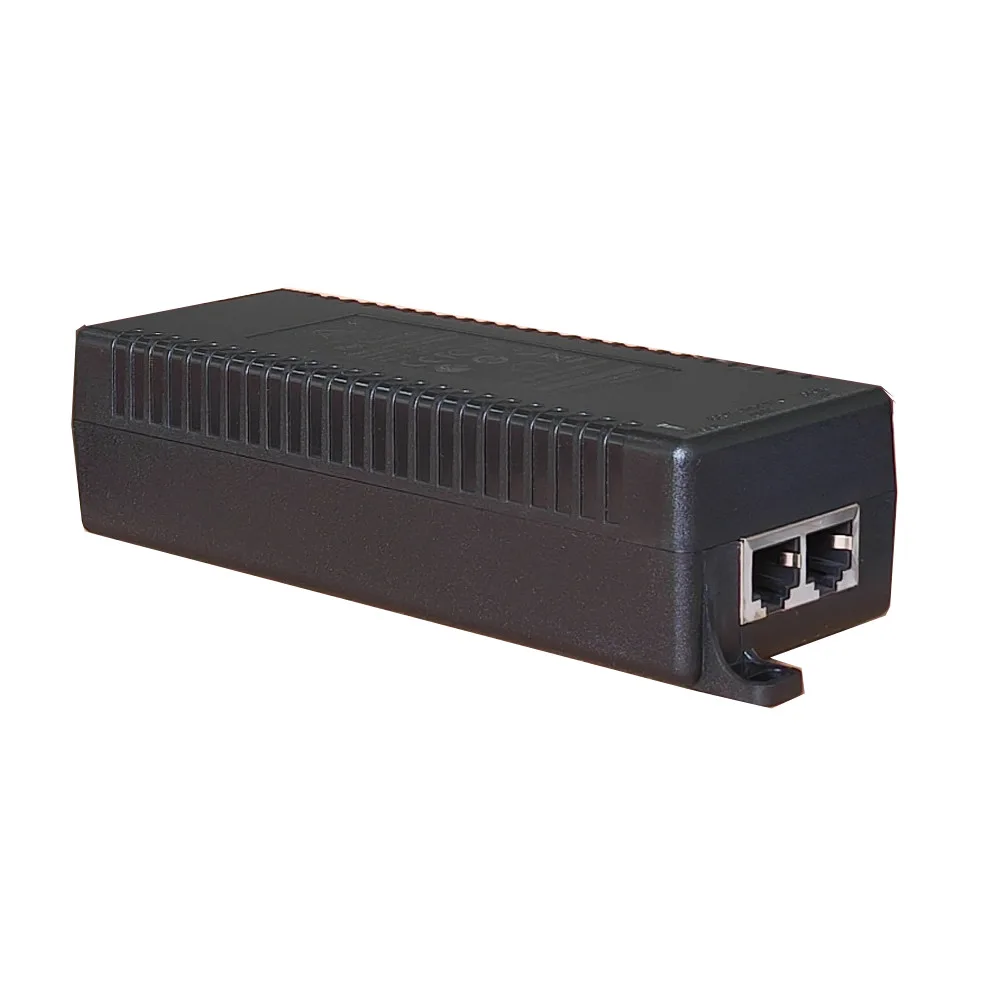

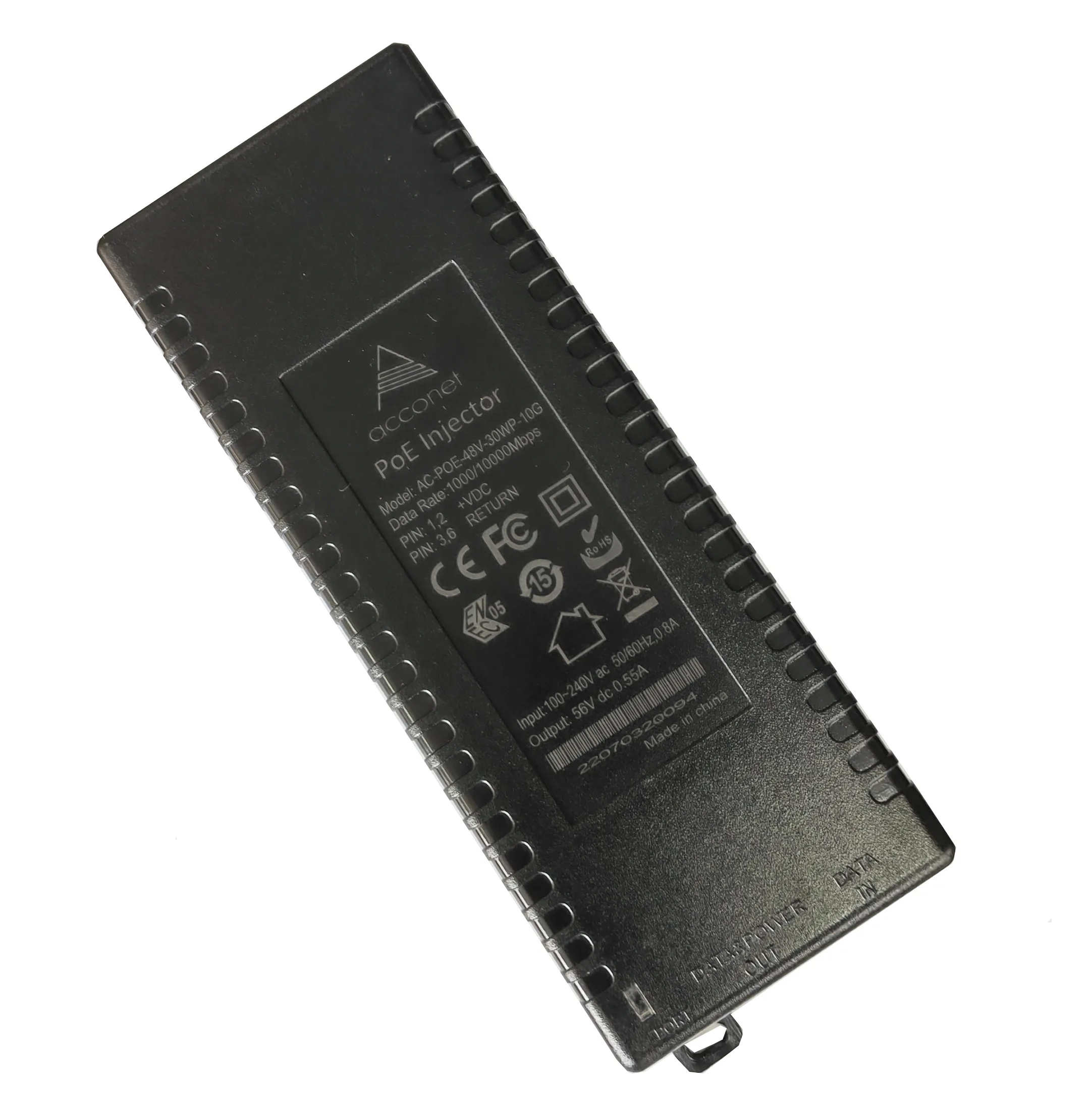

The Acconet PSE5206T is a 10Gbps passive Power over Ethernet (PoE) injector engineered to deliver both data and electrical power simultaneously over a single Ethernet cable. Built for modern high-bandwidth networks and low port-density environments, it provides a reliable power solution for remote network peripherals such as wireless access points, IP security cameras, and VoIP telephones.
Technical Specifications
- Manufacturer: Acconet
- Part Number / SKU: PSE5206T
- Product Type: 10Gbps Passive Power over Ethernet (PoE) Injector
- Supported Ethernet Speeds: 10/100/1000 Mbps, 2.5G, 5G, and 10G Base-T
- PoE Output Voltage: 48V DC
- Maximum Output Current: 0.625A (0.55A nominal)
- Maximum Power Output: 30 W
- Power Pinout: Pins 1/2 (+) and 3/6 (-)
- Transmission Distance: Up to 100 metres at 2.5Gbps; up to 30 metres at 10Gbps
- Surge Protection: 3kV on the AC port and 2kV on the RJ45 port
- Power Supply: Integrated internal AC/DC converter (no external power brick required)
- Indicators: Clear LED status indicators for AC power and channel power
- Dimensions: 175 mm x 65 mm x 30 mm
- Weight: Approximately 380 g
Key Features
- High-Speed 10G Infrastructure Support: Fully compatible with contemporary high-performance network setups, supporting data rates from standard Gigabit up to 10Gbps Base-T applications.
- Integrated Power Supply: Features a built-in AC/DC power conversion circuit, removing the clutter of external power bricks and streamlining physical installation.
- Built-In Surge Protection: Equipped with integrated electrical protection (3kV AC port, 2kV RJ45 port) to safeguard connected hardware against transient voltage surges.
- Plug-and-Play Operation: Operates entirely transparently with zero configuration required, allowing for quick deployment in existing networks.
- Versatile Deployment: Ideal for powering remote equipment in areas lacking local power outlets, such as ceiling-mounted wireless access points or security cameras deployed in low port-density environments.
