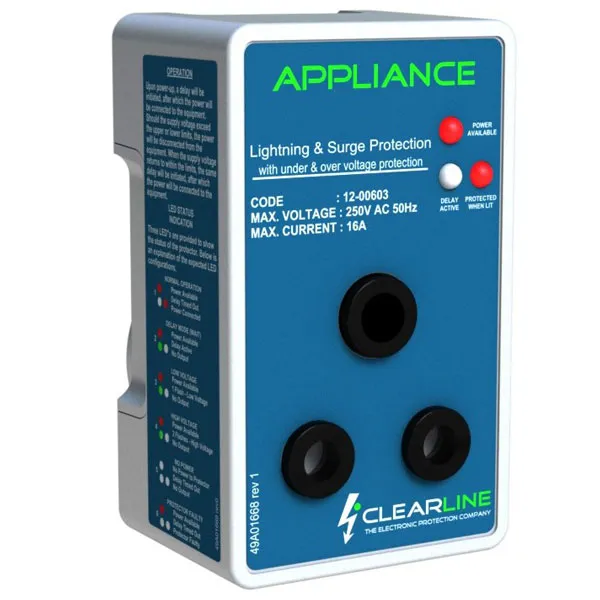

The Clearline Appliance Surge and Lightning Protector (10 Second Delay) protects sensitive electronics and motorised equipment from the damaging effects of unstable power, voltage surges, brownouts, and lightning spikes. By continuously monitoring the mains supply, the unit automatically disconnects power during over-voltage or under-voltage conditions and incorporates a built-in 10-second reconnect delay to let the power feed stabilise. Designed in a simple plug-and-play format, it features zero voltage switch-on for smooth operation and multi-status LED indicators.
Technical Specifications
- Product Code: 12-00603
- Nominal Input Voltage: 230VAC, 50Hz
- Maximum Continuous Current: 16A (Thermally Protected)
- Maximum Discharge Current (Ismax): 4.5kA to 8kA (L-N, L-E, N-E, 8/20us wave)
- Residual Voltage @ Ismax: <900V (typ)
- Response Time: <25ns
- Low Voltage Trip / Connect: 180V / 190V
- High Voltage Trip / Connect: 260V / 250V
- Connect Delay Time: 10 Seconds
- Input / Output Connectors: 16A 3-Pin Plug and Socket (Mains Plug-in)
- Standards Compliance: IEC 61643-1, IEC 950, ANSI C62.41
Key Features
- Voltage Fluctuation Defence: Actively cuts power during severe voltage dips (brownouts) and surges, shielding compressors, electric motors, and delicate appliances from premature burnout.
- Built-In 10-Second Delay: Prevents rapid switching stress by enforcing a 10-second stabilisation wait period before restoring power to connected devices.
- Inrush Current Reduction: Incorporates zero voltage switch-on functionality to minimise electrical stress and inrush current during startup.
- Comprehensive Status Monitoring: Features multi-function LED indicator lights to clearly communicate normal operation, delay timing mode, active over/under-voltage states, and surge protection integrity.
- Plug-and-Play Installation: Designed for effortless deployment by inserting directly between a standard wall socket and the appliance power cord.
