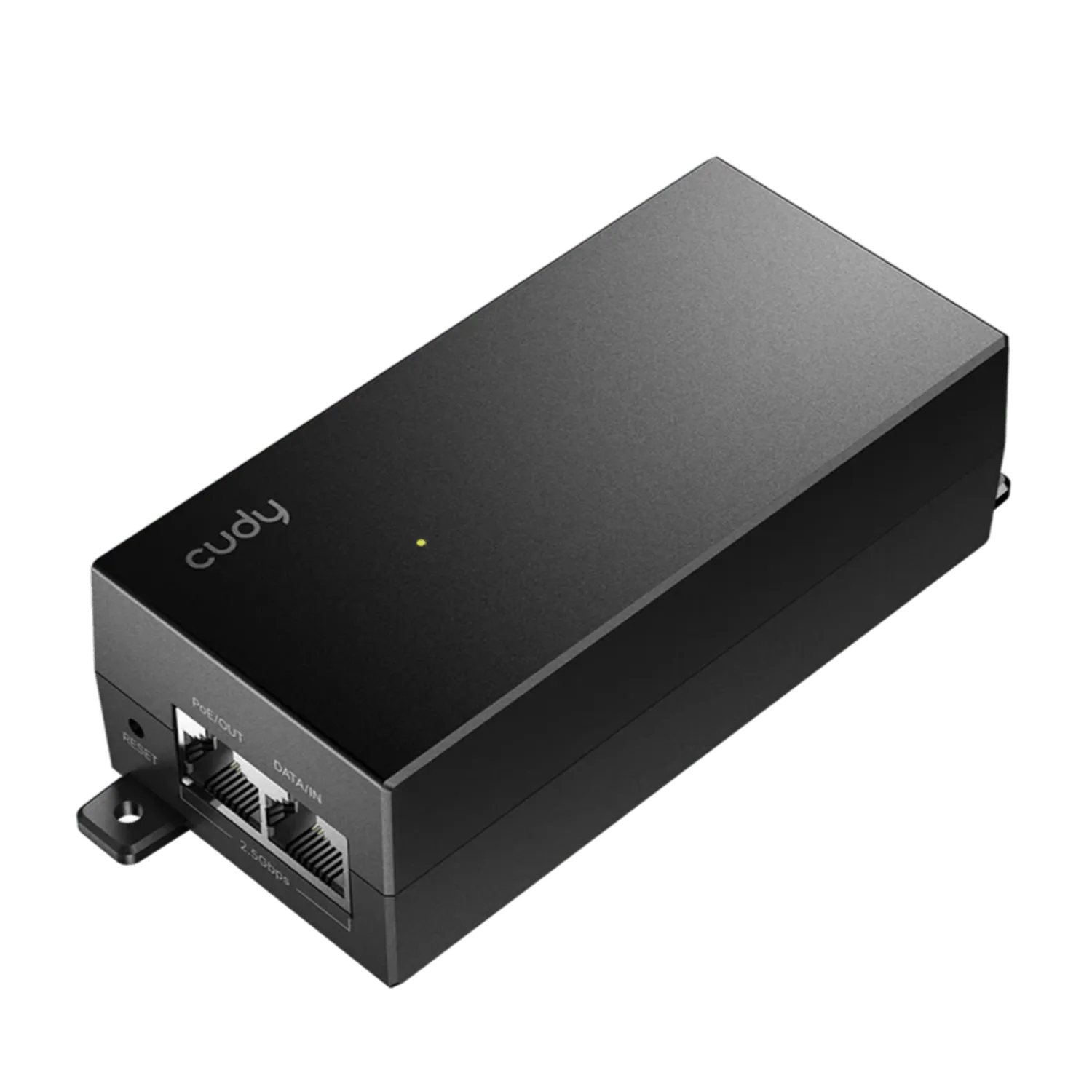

The Cudy POE200H is a high-performance 2.5Gbps Power over Ethernet (PoE+) injector designed to supply both data and reliable electrical power to compatible network devices—such as IP cameras, wireless access points, and VoIP phones—over a single Ethernet cable without replacing an existing switch.
Technical Specifications
- Manufacturer: Cudy
- Part Number / SKU: POE200H
- Product Type: 2.5Gbps PoE+ Injector
- Data Throughput: 2.5GbE uplink and downlink ports supporting 10/100/1000/2500 Mbps
- PoE Standards: IEEE 802.3at and IEEE 802.3af compliant
- Max Power Output: Up to 30W
- Pin Assignment: Mode A on the downlink port
- Transmission Distance: Up to 100 metres (approx. 328 ft) over Cat. 5e or higher cable
- Connectors: 1 x RJ-45 (Data / In), 1 x RJ-45 (PoE / Out)
- Status Monitoring: Power and PoE status LEDs
- Protection: Surge protection (Power: DM 4kV, CM 4kV; RJ45: CM 4kV) and Level 3 ESD protection
- Power Supply: Wide AC input range: 100–240V, 50/60 Hz
- Installation: Supports desktop and wall-mount installation
- Colour: Black
- Dimensions: 12.3 x 5.1 x 3.5 cm
Key Features
- High-Speed 2.5G Connectivity: Integrates seamlessly into high-speed networks, supporting full data throughput speeds up to 2500 Mbps on both uplink and downlink ports.
- Up to 30W PoE+ Power Delivery: Delivers up to 30 watts of power, making it fully compatible with standard IEEE 802.3at and backward-compatible with 802.3af powered devices.
- Simple Network Upgrade: Easily transforms a non-PoE network port into a PoE+ connection without the need to replace your current upstream switch or router.
- Plug-and-Play Operation: Requires zero configuration or software setup; simply plug in your cables for immediate deployment.
- Extended Reach: Transmits power and data reliably up to 100 metres over standard Cat. 5e or higher cabling.
- Comprehensive Circuit Protection: Built-in surge protection, electrostatic discharge (ESD) shielding, and overvoltage safeguards ensure connected equipment remains safe.
