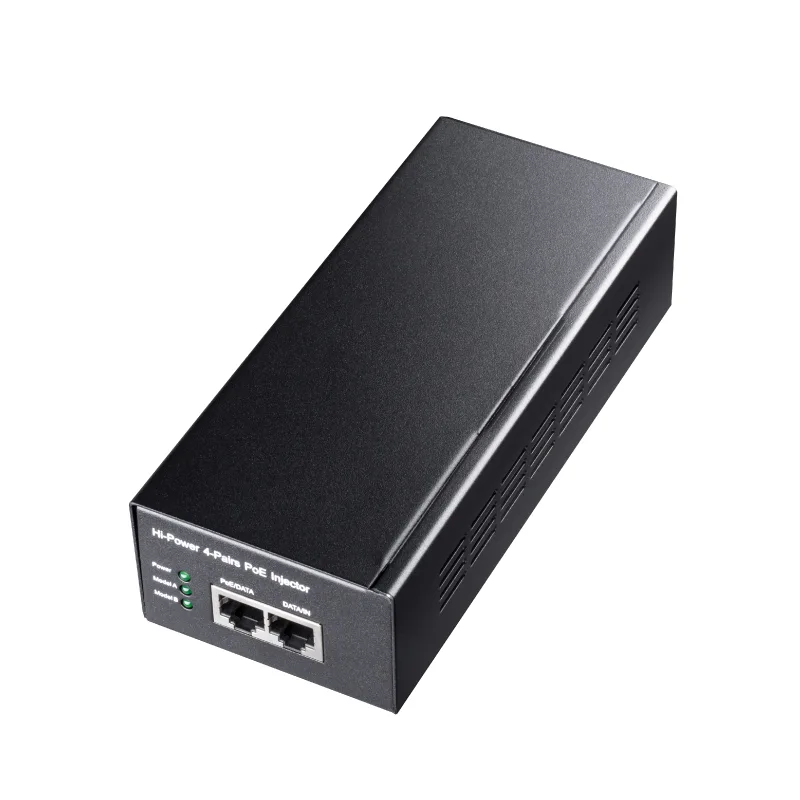

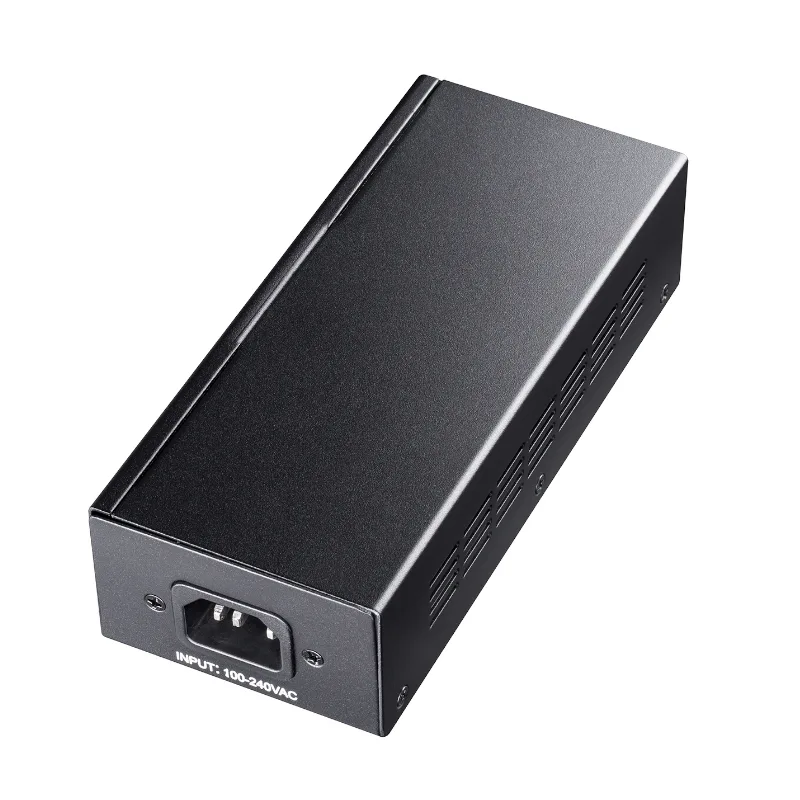

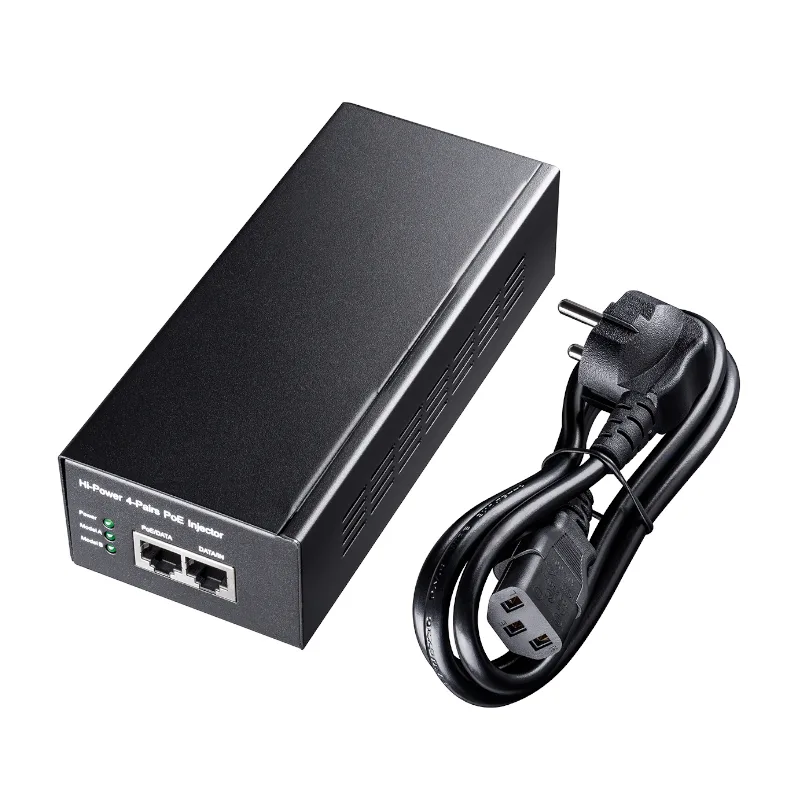

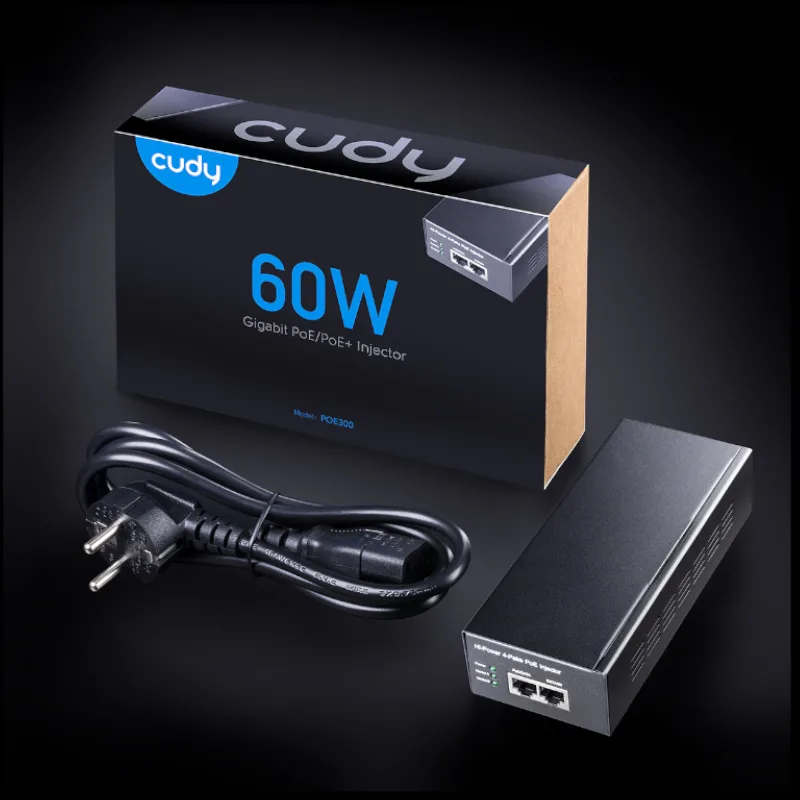

The Cudy POE300 is a high-performance, single-port Gigabit PoE+ injector engineered to seamlessly supply both reliable data and electrical power over a single Ethernet cable to compatible network equipment. Designed with auto-sensing technology and robust compliance standards, this injector eliminates the need for standalone power outlets near remote devices like IP cameras and wireless access points.
Technical Specifications
- Manufacturer: Cudy
- Part Number / SKU: POE300
- Product Type: 60W Gigabit PoE+ / Ultra PoE Injector
- Number of Channels: 1
- Data Rates / Pass-Through: 10/100/1000 Mbps (Gigabit Ethernet)
- Connectors: Shielded RJ-45, EIA 568A and 568B
- Power Output / User Port Power: Up to 60W total power over 4 pairs (Backwards compatible with IEEE 802.3at 30W and IEEE 802.3af 15.4W)
- Output Voltage: 50 Vdc
- Pin Assignment & Polarity: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-)
- Input Power Requirements: AC Input Voltage: 100 to 240 VAC, 50/60 Hz; Input Current: 0.5A

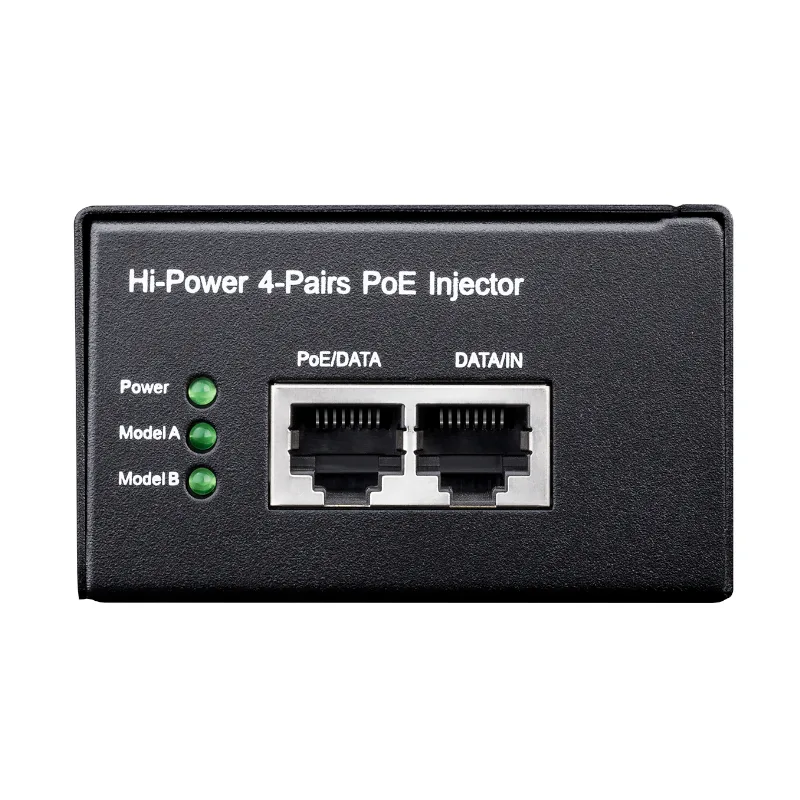

- LED Indicators: System Indicator (AC Power), User Indicator (Channel Power)
- Regulatory Compliance: IEEE 802.3af (15.4W), IEEE 802.3at (30W), IEEE 802.3at 4-Pairs (60W)
- Operating Temperature: 0°C ~ 45°C
- Operating Humidity: Maximum 90%, Non-condensing
- Dimensions: 145 x 60 x 40 mm
- Colour: Black
Key Features
- High-Power 60W PoE Supply: Delivers up to 60 watts of power across 4 pairs to drive power-hungry hardware like PTZ security cameras and high-power wireless base stations.
- Gigabit Speed Performance: Features 1 Gigabit Ethernet input port and 1 Gigabit PoE output port to support full-duplex high-speed data transmission without bottlenecks.
- Auto-Sensing Intelligence: Automatically detects connected equipment requirements, safely supplying correct power levels while remaining backwards compatible with standard PoE and PoE+ devices.
- Extended Reach Cabling: Enables networking and powering for remote IP equipment located up to 100 metres (328 ft) away from the power source.
- Plug & Play Setup: Simple installation requiring zero software configuration or setup hassle, accommodating diverse home and office deployment scenarios.
- Built-In Protection: Designed with internal surge protection and a sturdy metal housing to ensure safe and stable operation over extended periods.
