Product Overview

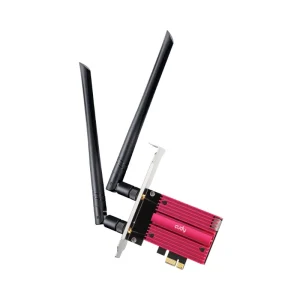

The Cudy WE9300 (BE9300) is a high-performance, tri-band Wi-Fi 7 and Bluetooth 5.4 PCI Express adapter built around the Intel BE200 module. Equipped with an integrated heatsink and dual high-gain detachable antennas, it brings ultra-fast Wi-Fi 7 speeds, minimal latency, and robust connectivity to desktop PC builds.
Technical Specifications
- Part Number: WE9300 (Cudy BE9300)
- Chipset: Intel BE200
- Wireless Standard: Wi-Fi 7 (802.11be/ax/ac/a/b/g/n)
- Band / Speed Support:
- 6 GHz: Up to 5760 Mbps (2×2 MIMO)
- 5 GHz: Up to 2882 Mbps (2×2 MIMO)
- 2.4 GHz: Up to 688 Mbps (2×2 MIMO)
- Bluetooth Version: Bluetooth 5.4
- Host Interface: PCI Express (Compatible with PCIe x1, x4, x8, x16 slots)
- Bluetooth Interface: 9-Pin USB internal motherboard connection
- Antenna Connectors: 2x RP-SMA Female (Detachable high-gain antennas included)
- Operating System Compatibility: Windows 11 (64-bit)
Key Features
- Next-Generation Wi-Fi 7: Harnesses advanced features like Multi-Link Operation (MLO) and 4K-QAM across the uncluttered 6 GHz spectrum to drastically minimise interference and boost throughput up to 9300 Mbps aggregate.
- Integrated Bluetooth 5.4: Delivers faster device pairing, enhanced energy efficiency, and rock-solid connection reliability for modern peripherals like controllers, headsets, and mice.
- Effective Thermal Design: Features a dedicated low-profile heatsink attached to the Intel module to dissipate heat efficiently and maintain stable performance during heavy data loads, intensive downloading, and gaming.
- Flexible Installation: Ships with both standard and low-profile brackets, making it fully compatible with traditional full-tower desktops as well as compact Mini-ITX or HTPC chassis.
