The Grandstream GWN7661E is a high-performance AX3000 Wi-Fi 6 in-wall access point designed for discreet, flush-mount installation in offices, hotels, apartments, and homes. It features dual-band 2×2:2 (2.4GHz) and 3×3:2 (5GHz) MU-MIMO and OFDMA technology, delivering aggregate wireless throughput of up to 3Gbps. With an embedded controller for easy management and integrated Gigabit ports, it provides a clean, professional solution for both wireless and wired connectivity.
Technical Specifications
- Model Number: GWN7661E
- Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
- Aggregate Throughput: Up to 3Gbps
- MIMO Configuration: 2×2:2 (2.4GHz) and 3×3:2 (5GHz) MU-MIMO
- Concurrent Clients: Up to 256 devices
- Network Interfaces:
- 1 x 10/100/1000M Uplink Ethernet port (PoE/PoE+ support)
- 2 x 10/100/1000M Ethernet ports with PSE (PoE output)
- 1 x 10/100/1000M Ethernet port
- Antennas: 2x dual-band internal antennas, 1x 5G internal antenna
- Coverage Range: Up to 100 meters
- Security: WPA3, anti-hacking secure boot, critical data/control lockdown via digital signatures, and unique security certificate/random default password per device
- Management: Embedded controller (up to 50 local APs), GDMS (cloud), and GWN Manager (on-premise)
- Dimensions: 135mm (L) x 86mm (W) x 38.5mm (H)
Key Features

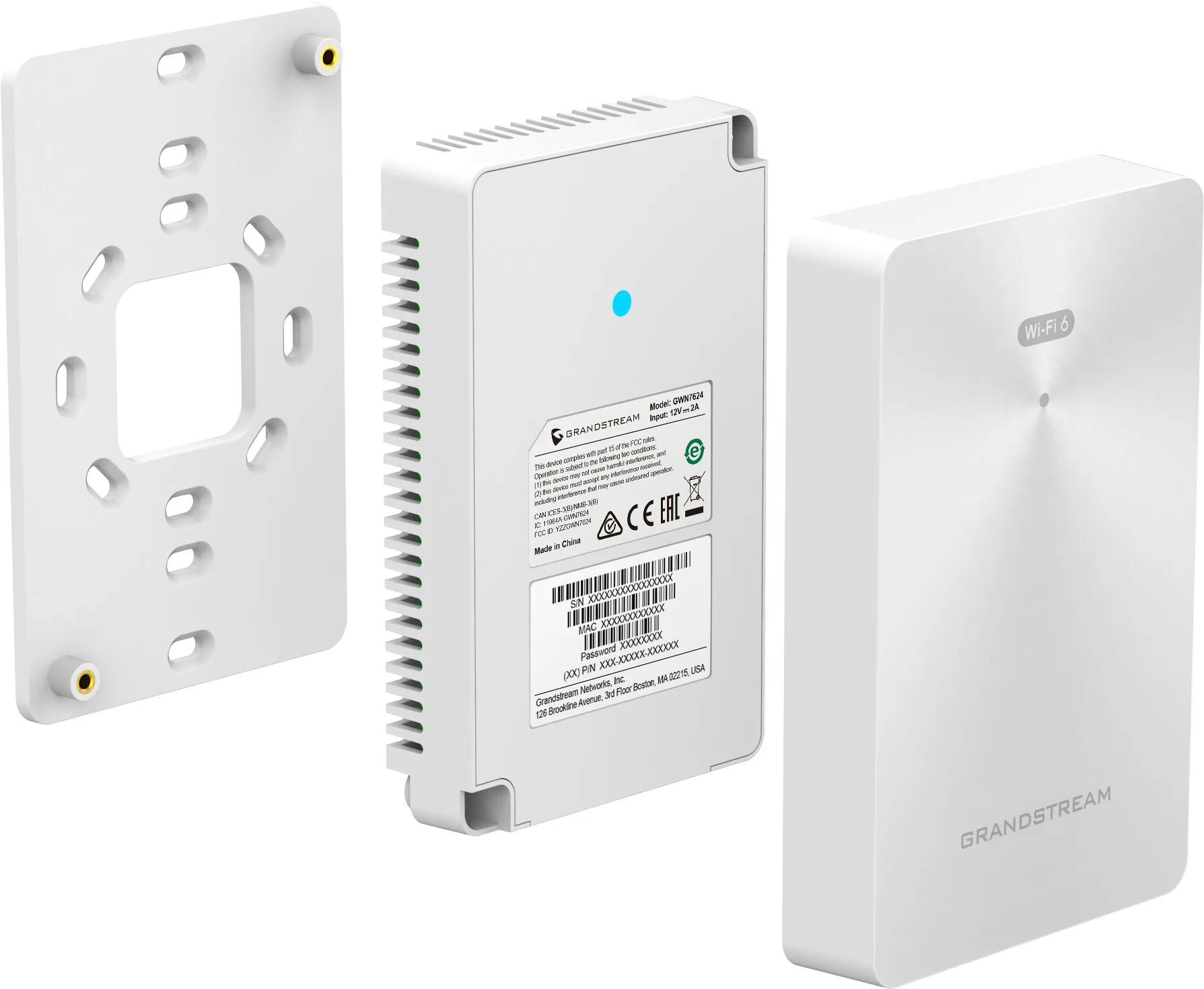

- In-Wall Installation: Designed for a clean, flush-mount finish that blends into the surrounding environment.

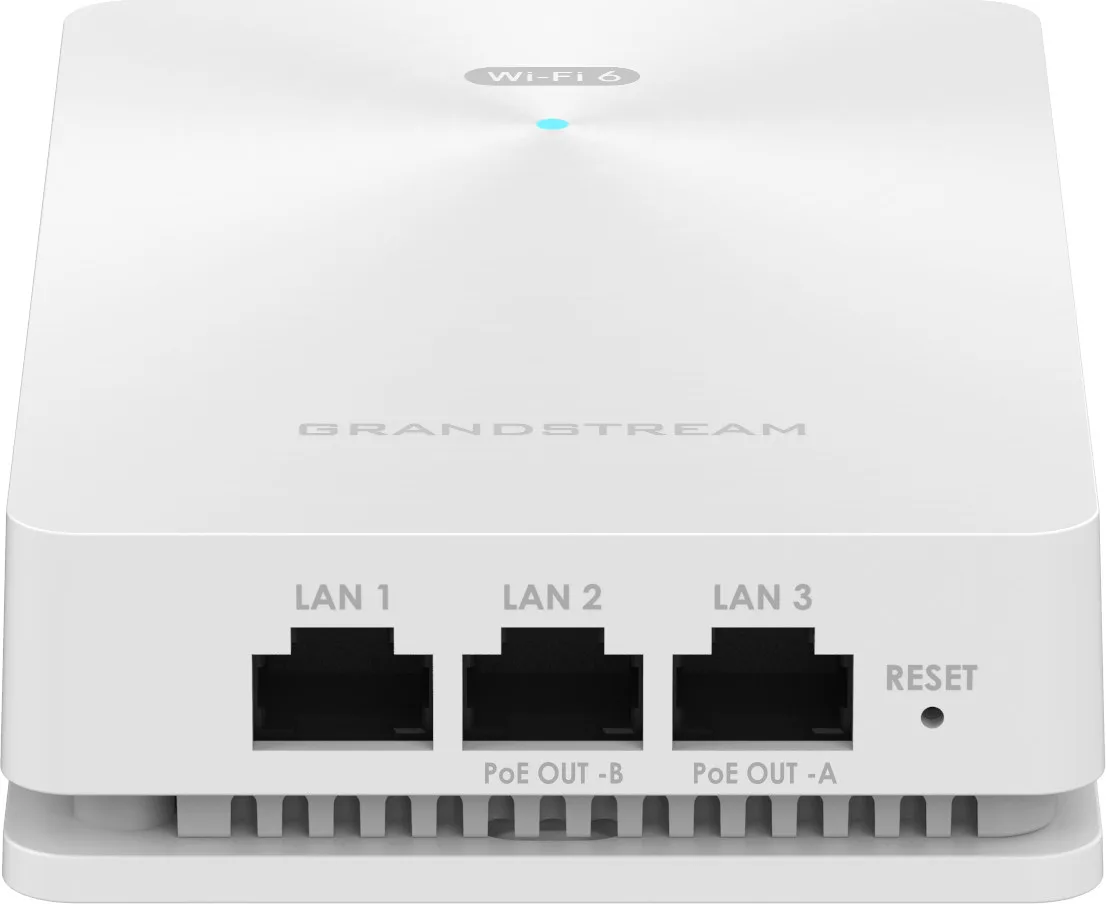

- Versatile Connectivity: Includes four total Gigabit Ethernet ports; the PSE ports allow you to power downstream devices like IP phones, cameras, or TVs.
- Advanced QoS: Supports sophisticated Quality of Service settings to ensure real-time performance for low-latency applications like voice-over-Wi-Fi.
- Self-Power Adaptation: Automatically detects PoE/PoE+ input to optimise power consumption and PSE output capabilities.
- Enterprise Security: Built-in security features, including digital signatures and secure boot, protect the device from malicious hacking attempts.
