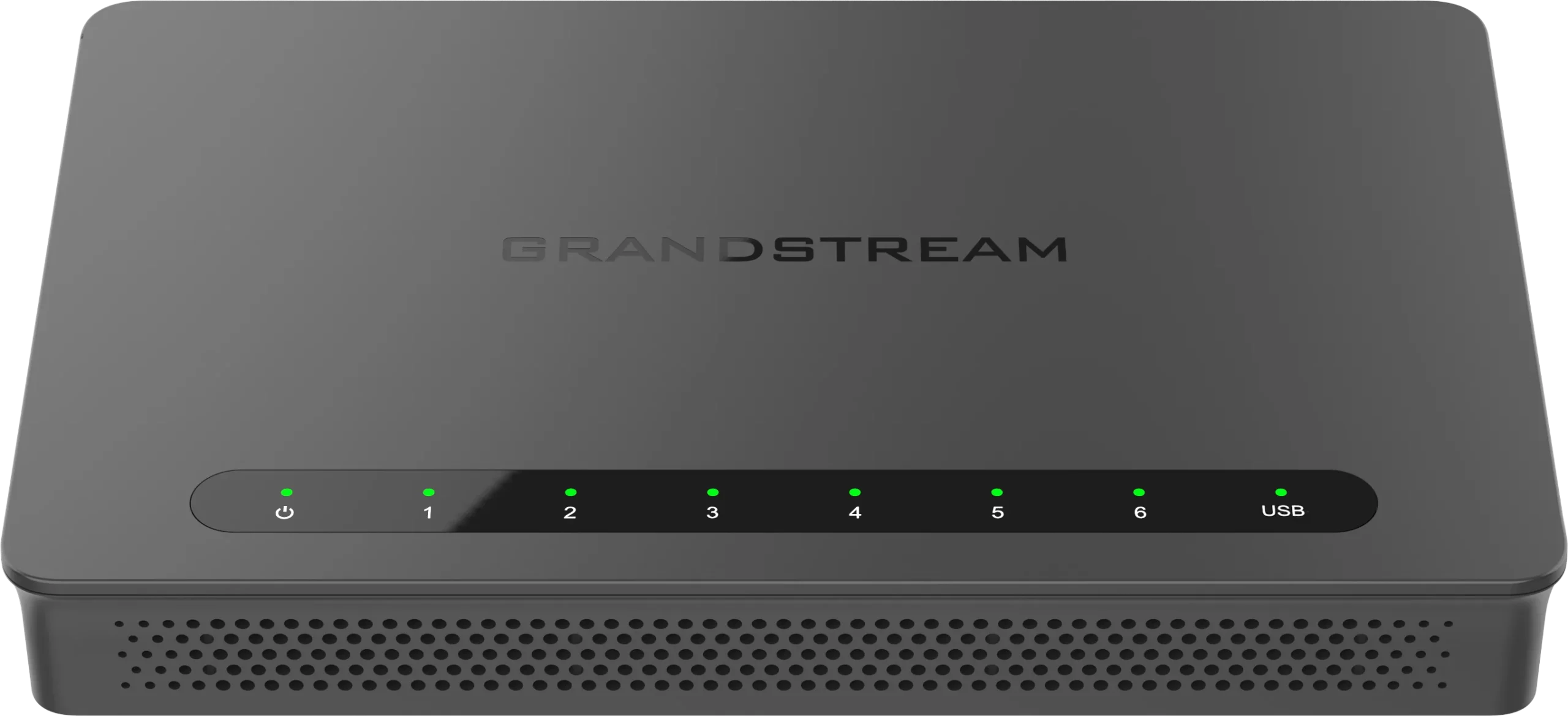

The Grandstream GWN7002 is a powerful, enterprise-grade Multi-WAN Gigabit VPN router designed for small-to-medium businesses, retail, education, hospitality, and healthcare environments. It delivers high-performance routing with a NAT throughput of 2.2Gbps and robust security through its built-in firewall, deep packet inspection (DPI), and comprehensive VPN support. Equipped with an embedded controller, it can manage itself and up to 150 Grandstream GWN Series Wi-Fi access points.
Technical Specifications
- Model Number: GWN7002
- Processor: Dual ARM Cortex A53 1 GHz
- Memory: 256MB RAM, 256MB Flash

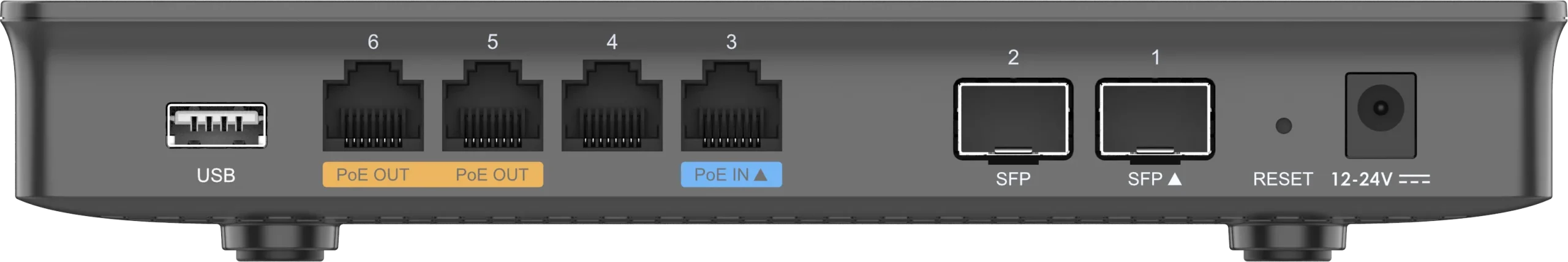

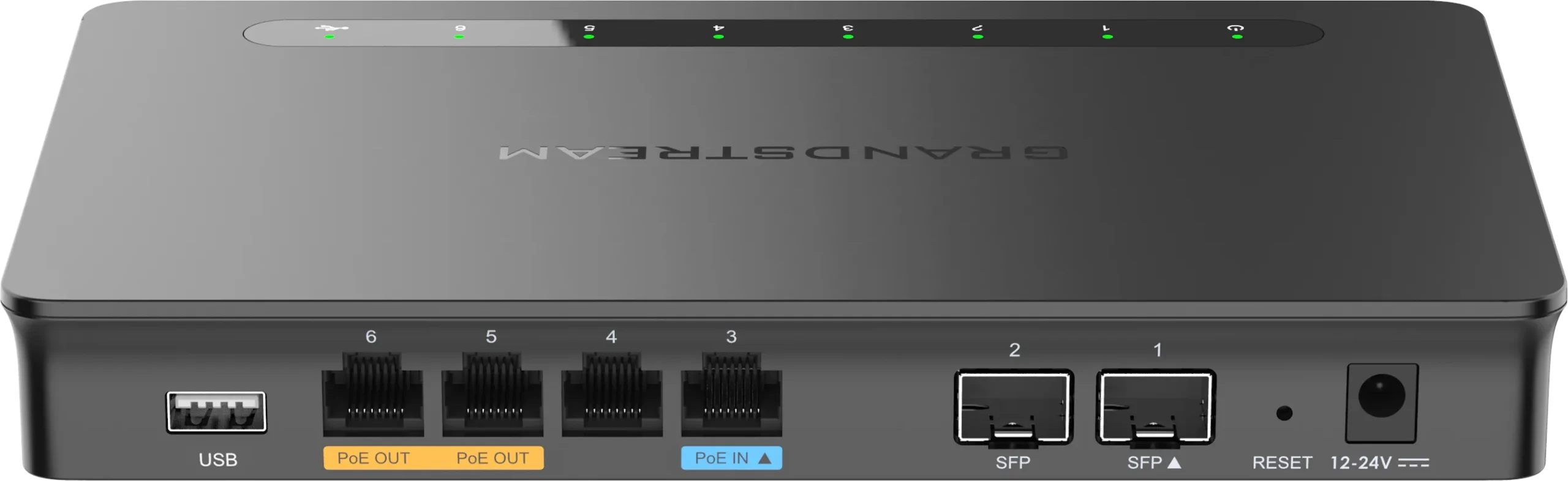

- Network Interfaces:
- 2 x Gigabit SFP ports
- 4 x Gigabit Ethernet ports (All ports are WAN/LAN configurable)
- PoE Capability:
- PoE Input: IEEE 802.3af/at
- PoE Output: 2 x ports (Passive 48V or IEEE802.3af)
- Performance:
- NAT Throughput: 2.2Gbps
- IPsec VPN Throughput: 530Mbps
- Concurrent NAT Sessions: 30,000
- VPN Support: Up to 50 concurrent tunnels (IPsec, OpenVPN, WireGuard, PPTP, L2TP)
- Management: Embedded controller (up to 150 APs), GWN.Cloud, and GWN Manager
- Auxiliary Ports: 1 x USB 2.0 port
Key Features
- Multi-WAN Reliability: Supports traffic load balancing and failover to maximise connection stability across multiple internet links.
- Advanced Security: Features a built-in firewall with support for DDNS, port forwarding, DMZ, UPnP, Anti-DoS, and traffic rules. Includes content filtering (Application/URL/DNS/Web) and Deep Packet Inspection (DPI).
- Flexible Deployment: Versatile desktop or wall-mountable design with all ports configurable as either WAN or LAN to suit specific network architectures.
- Power over Ethernet (PoE): Dual PoE output ports allow the router to directly power external endpoints like VoIP phones or access points, simplifying infrastructure.
- Centralised Management: Provides a free, scalable management ecosystem via an embedded web interface or cloud-based platforms (GWN.Cloud).
