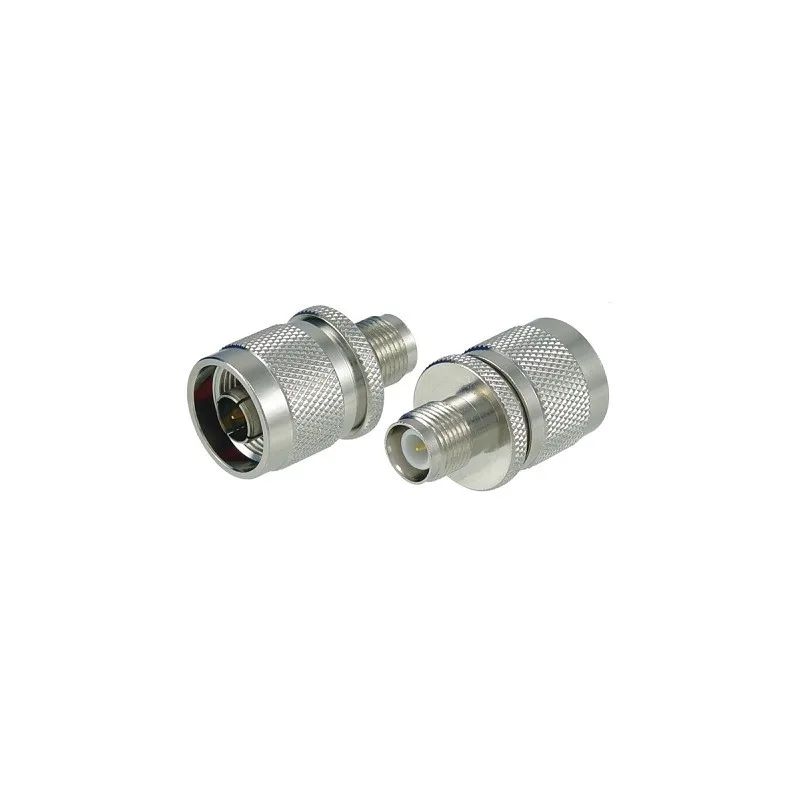

The JACK-N-M-TNC-M is an inter-series RF coaxial adapter designed to bridge standard Type N infrastructure with reverse-polarity wireless equipment. It links an N-type male connector to a TNC male reverse polarity (RP-TNC Male) connector, ensuring secure and reliable signal transmission for professional antenna systems, test setups, and wireless communication hardware.
Technical Specifications
- Adapter Type: Inter-Series Coaxial Adapter
- Connector A: N-Type Male (Plug)
- Connector B: TNC Male Reverse Polarity (RP-TNC Plug)
- Impedance: 50 Ohms
- Housing Material: Durable Metal / Nickel-Plated Brass
Key Features
- Cross-Standard Connectivity: Seamlessly converts an N-type male interface to mate with a reverse-polarity TNC male connection, eliminating the need for custom pigtail assemblies.
- Signal Integrity: Engineered to maintain minimal insertion loss and low VSWR across standard RF and wireless frequency spectrums.
- Robust Mechanical Design: Built with a rugged, weather-resistant metal housing to withstand demanding field deployments, base station installations, and test bench environments.
- Secure Threaded Coupling: Features precision-threaded coupling mechanisms on both ends to guarantee a stable, low-loss physical connection under tension or vibration.
