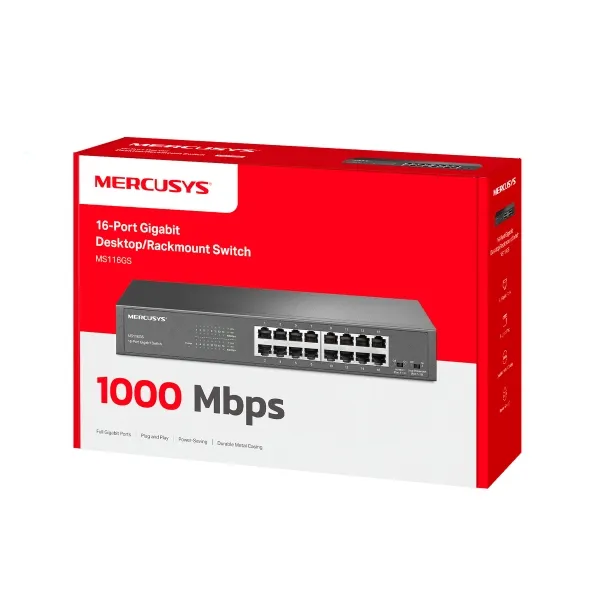

The Mercusys MS116GS is a 16 port Gigabit desktop and rackmount switch engineered to provide dependable wired network expansion for small offices, homes, and dormitories. Built with a durable metal enclosure, it ensures efficient heat dissipation and quiet, fanless operation.
Technical Specifications
- Manufacturer: Mercusys
- Part Number / SKU: MS116GS
- Product Type: 16 Port Gigabit Desktop/Rackmount Switch
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
- Interfaces: 16 x 10/100/1000 Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX
- Switching Capacity: 32 Gbps
- MAC Address Table: 8K
- Transfer Method: Store and Forward
- External Power Supply: 100-240 VAC, 50/60 Hz
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Operating Humidity: 10% to 90% non-condensing
- Dimensions (W x D x H): 294 x 140 x 44 mm
- Certifications: CE, RoHS
Key Features
- Full Gigabit Connectivity: Equipped with 16 auto-negotiation Gigabit ports to deliver high-speed wired connections for computers, 4K UHD televisions, game consoles, and IP cameras.
- One-Click Isolation Mode: Features a hardware isolation toggle that separates client traffic on ports 1 to 14, helping to prevent snooping and mitigate broadcast storms for enhanced security.
- Loop Prevention & Auto-Recovery: Continuously monitors network structures to identify and address looping issues, protecting the system from unexpected disruptions.
- Quality of Service (QoS): Incorporates 802.1P/DSCP QoS support to prioritise latency-sensitive data traffic.
- Durable Metal Build: Housed in a sturdy metal casing that promotes optimal thermal performance and long-term operational reliability.
- Silent Fanless Design: Operates entirely without a cooling fan, ensuring absolute quiet for noise-sensitive environments and desktop deployment.
