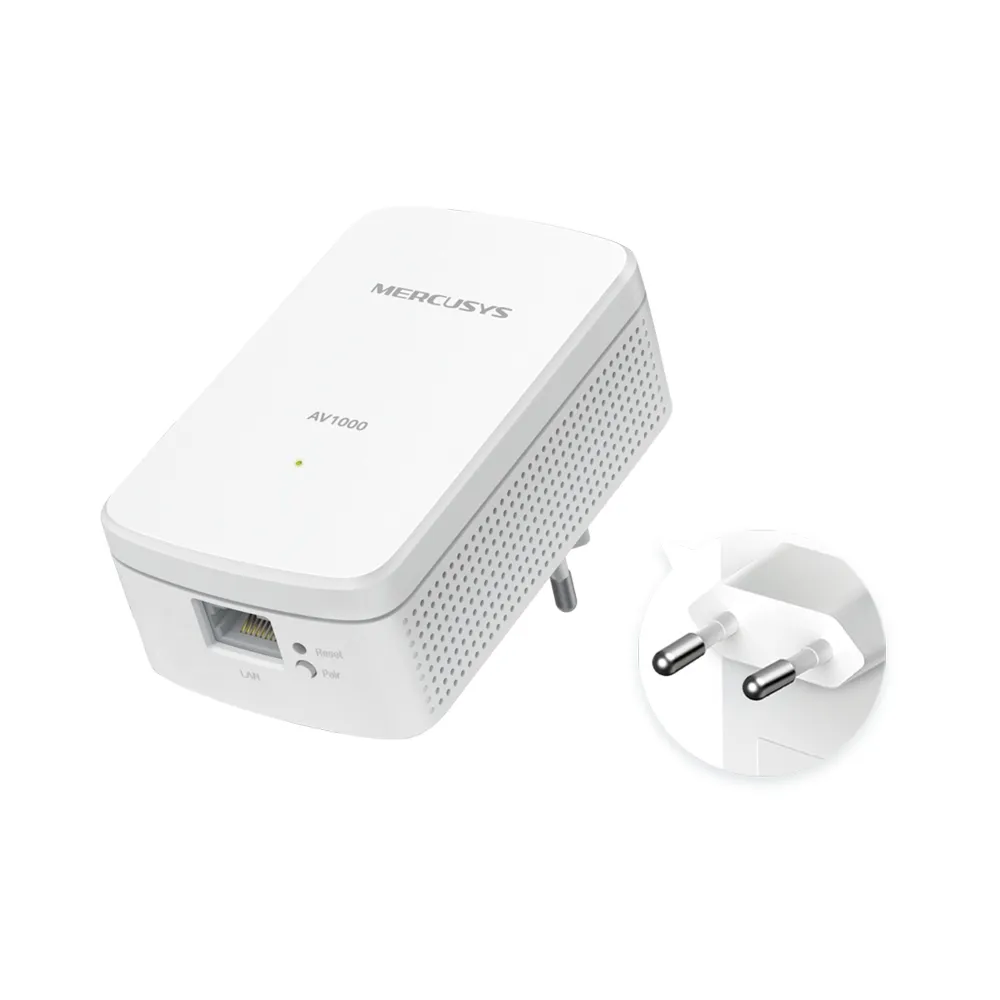

The Mercusys MP500 KIT is an AV1000 Gigabit Powerline Starter Kit designed to effortlessly extend your high-speed network across a building using existing electrical wiring. Bypassing physical obstacles and the need for complex cabling, this plug-and-play solution delivers fast, stable wired connectivity ideal for 4K streaming, online gaming, and intensive data applications.
Technical Specifications
- Model Number: MP500 KIT
- Protocol Standards: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Data Transfer Rate: Up to 1000 Mbps (Powerline)
- Interface / Ports: 1x Gigabit Ethernet Port (per adapter)
- Buttons: Pair / Reset Button
- LED Indicators: Power
- Modulation Technology: OFDM (PLC)
- Encryption: 128-bit AES Powerline Security
- Transmission Range: Up to 300 meters over electrical circuits
- Physical Dimensions: 101 × 60 × 36 mm
- Operating Environment:
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
Key Features
- AV1000 High-Speed Transfer: Leverages advanced HomePlug AV2 technology to provide data rates up to 1000 Mbps over standard electrical lines.
- Gigabit Wired Connectivity: Equipped with a dedicated gigabit port to deliver uncompromised high-speed internet directly to PCs, smart TVs, IPTVs, and gaming consoles.
- True Plug and Play: Requires no new wires, drilling, or complicated configuration—simply plug one adapter into your router and another into any electrical outlet to establish connection.
- Easy Network Expansion: Seamlessly scale coverage to additional rooms or floors by simply pairing extra Powerline adapters to the existing circuit.
