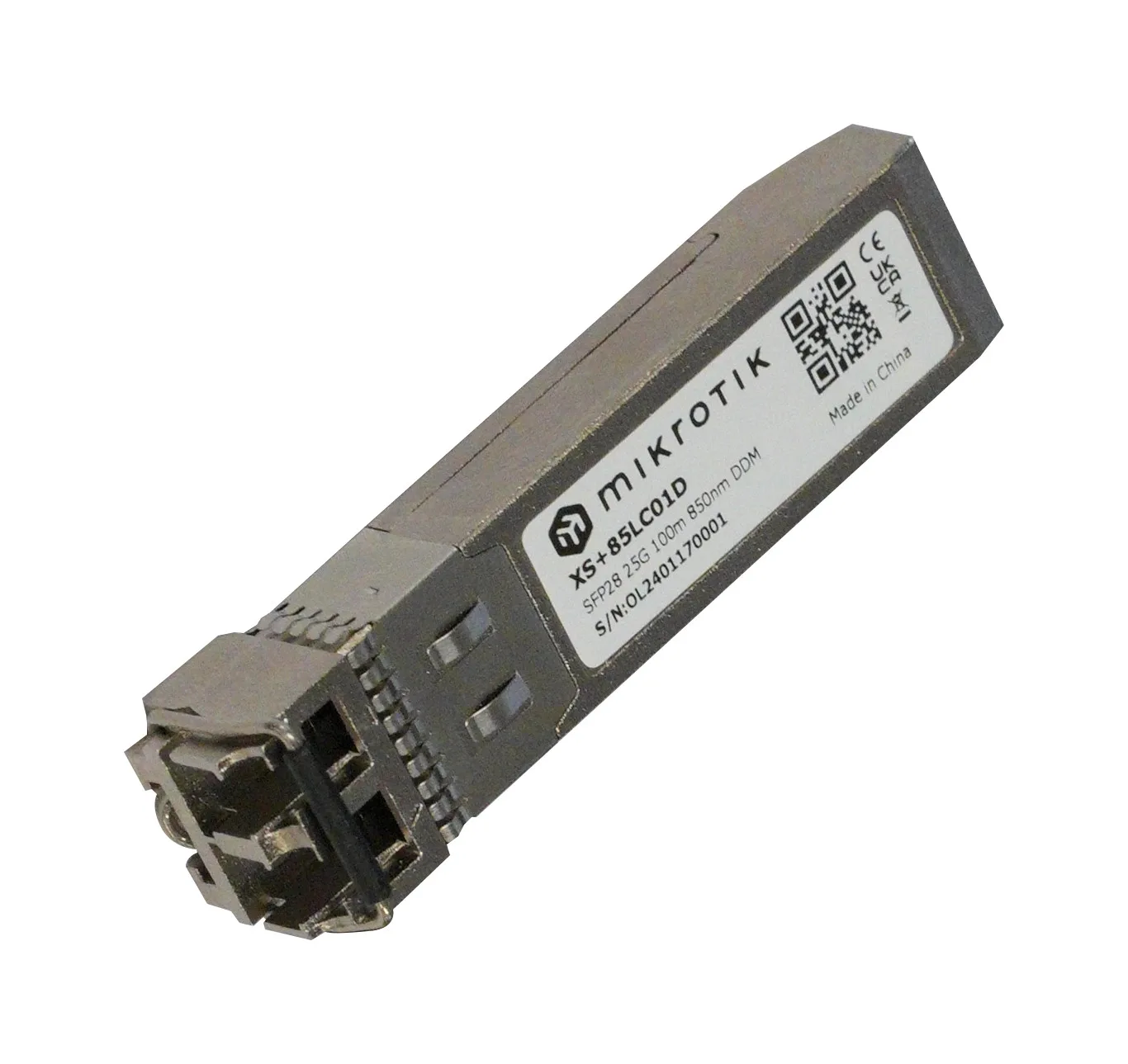

The MikroTik XS+85LC01D is a versatile and cost-effective optical transceiver designed for high-performance networking. This module supports multiple data rates – 1.25G (SFP), 10G (SFP+), and 25G (SFP28) – making it an ideal solution for scaling network infrastructure from home setups to enterprise data centres. Engineered for short-range links up to 100 meters, it features built-in digital diagnostic functions for real-time monitoring and proactive maintenance.
Technical Specifications
- Product Code: XS+85LC01D
- Supported Data Rates: 1.25 Gbps / 10 Gbps / 25 Gbps
- Format/Interface: SFP / SFP+ / SFP28
- Connector Type: Dual LC UPC
- Fibre Type: Multi-Mode (MM)
- Optical Wavelength: 850 nm
- Maximum Distance: 100 metres (at 25G full-duplex)
- Operating Temperature: -40°C to +85°C
- Power Consumption: 1 W
- Digital Diagnostics (DDM/DOM): Supported (Optical power, voltage, temperature, and laser bias current monitoring)
Key Features
- Multi-Speed Compatibility: Offers the flexibility to use the same hardware across different network speeds (1G/10G/25G), perfect for future-proofing or migrating existing setups.
- Industrial-Grade Reliability: Designed with an extensive operating temperature range (-40°C to +85°C), ensuring stability in challenging environments.
- Intelligent Monitoring: Integrated digital diagnostics allow users to monitor transceiver performance and set customisable operating limits to predict maintenance needs.
- Cost-Effective Efficiency: Provides high-speed 25G connectivity at an affordable price point, specifically optimised for short-distance, high-bandwidth applications.
