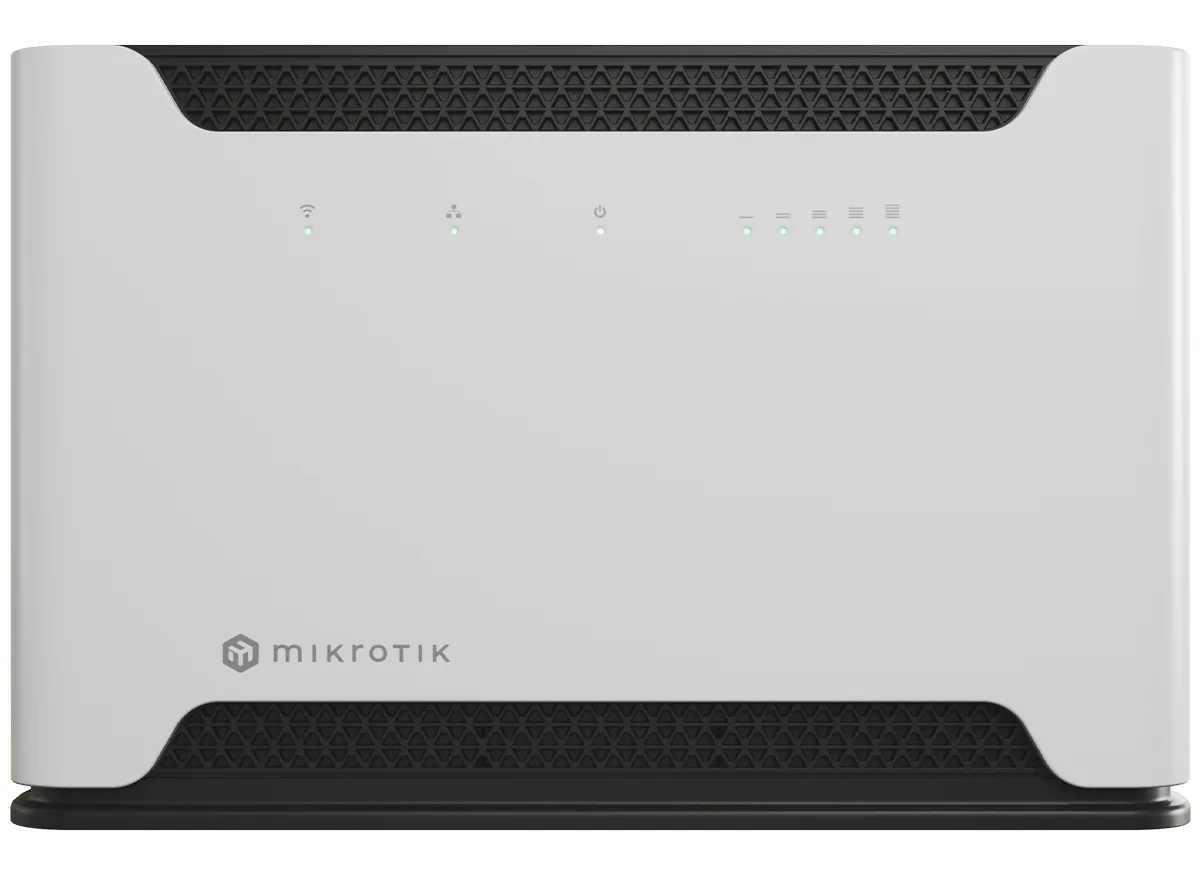

The MikroTik Chateau LTE7 (D53G-5HacD2HnD-TC&R11e-LTE7) is a versatile high-performance home and office wireless access point featuring an integrated LTE Category 7 modem and a speedy quad-core ARM processor. Designed for environments requiring reliable primary or backup connectivity, it delivers dual-band Wi-Fi, five Gigabit Ethernet ports, and advanced routing capabilities powered by RouterOS v7.
Technical Specifications
- Product Code: D53G-5HacD2HnD-TC&R11e-LTE7 (Chateau LTE7)
- CPU: IPQ-4019 Quad-Core 448–896 MHz (Auto)
- CPU Architecture: ARM 32-bit
- RAM Size: 256 MB DDR3L
- Storage Size / Type: 16 MB Flash
- Ethernet Ports: 5x 10/100/1000 Mbps Gigabit Ethernet ports
- Cellular Modem: R11e-LTE7 (LTE Category 7)
- LTE Speeds: Downlink up to 300 Mbps, Uplink up to 100 Mbps
- Supported LTE FDD Bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
- Supported LTE TDD Bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz)
- 3G Support: Category R8 (42.2 Mbps Downlink / 5.76 Mbps Uplink) across Bands 1, 3, 5, and 8
- Wireless Standards: 2.4 GHz 802.11b/g/n (Wi-Fi 4, dual-chain) / 5 GHz 802.11a/n/ac (Wi-Fi 5, dual-chain)
- Antenna Gain: 2 dBi (2.4 GHz), 4 dBi (5 GHz)
- SIM Slot: 1x Micro SIM slot
- USB Port: 1x USB 2.0 Type-A (supports power reset, max 1A)
- Operating System: RouterOS v7 (License Level 4)
- Power Input: DC jack 12V – 28V (24V 1.2A power adapter included)
- Max Power Consumption: 21 W (14.1 W without attachments)
- Dimensions: 240 x 156 x 44 mm
Key Features
- High-Speed LTE Cat7 Performance: Utilizes carrier aggregation to reach up to 300 Mbps download and 100 Mbps upload speeds, ensuring reliable connectivity in congested or remote locations.
- Robust Wired Connectivity: Equipped with five Gigabit Ethernet ports to easily hook up local desktop computers, smart TVs, or network storage (NAS).
- Simultaneous Dual-Band Wi-Fi: Provides dependable wireless coverage across both 2.4 GHz and 5 GHz bands to minimise network congestion and separate high-bandwidth tasks.
- Advanced Management & Security: Runs on MikroTik’s powerful RouterOS v7, enabling complete control over user access management, firewall filters, and secure VPN configurations.
- Flexible Deployment: Functions seamlessly either as a primary internet gateway using cellular data or as an automatic failover backup connection to a fixed-line ISP.
