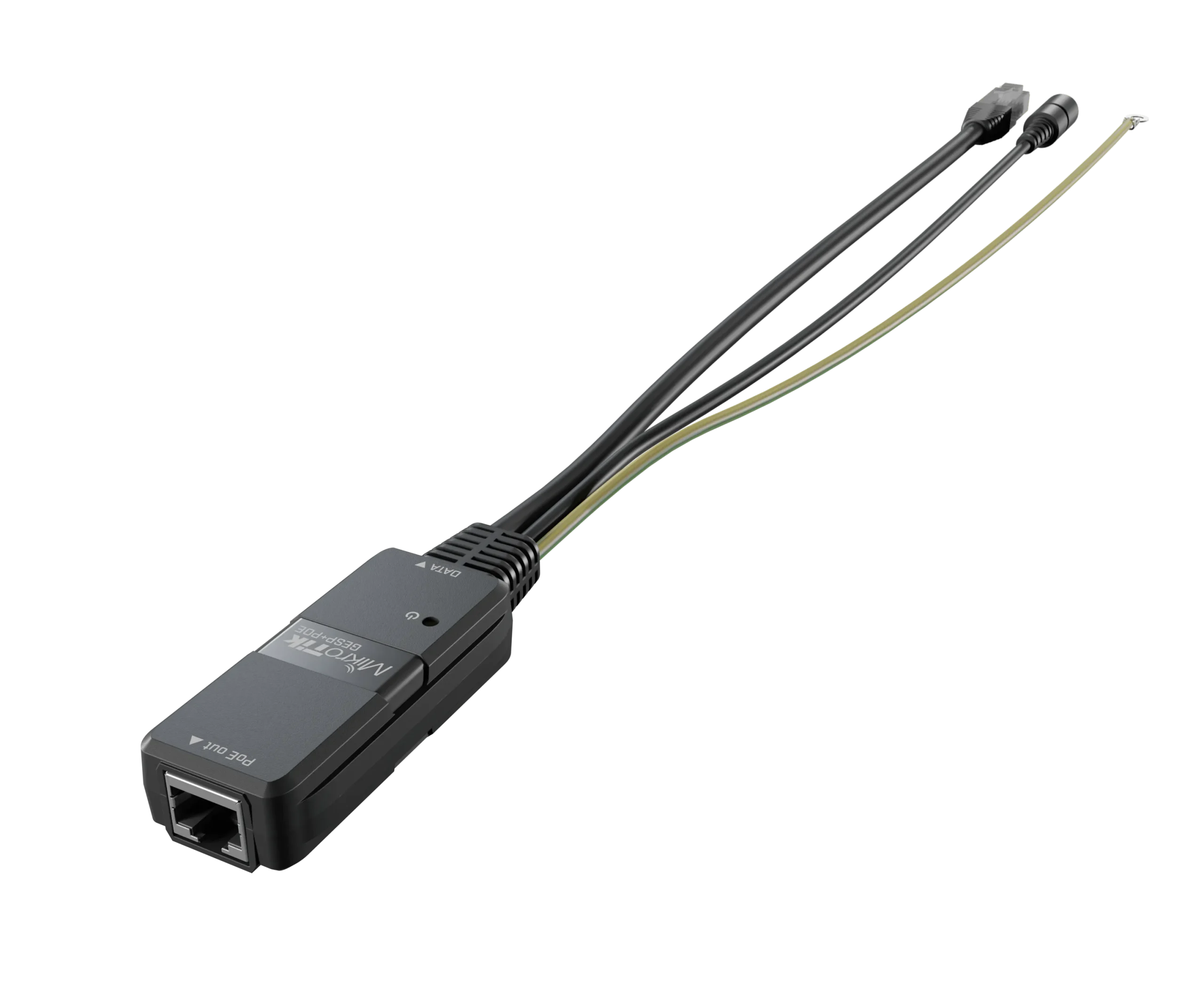

The MikroTik GESP+POE-IN is a professional-grade passive PoE injector integrated with high-performance surge protection. Designed to safeguard sensitive network equipment, this unit provides a critical layer of defence against voltage spikes, lightning-induced surges, and static discharge. It is an essential component for outdoor wireless links, IP cameras, and remote access points where reliable power delivery and hardware protection are required.
Technical Specifications
- Product Code: GESP+POE-IN
- Data Line Protection: Gigabit Ethernet (10/100/1000 Mbps)
- PoE Support: Passive PoE
- Interface Connections: RJ45 Male/Female
- Discharge Current: 3 kA (8/20 μs)
- DC Spark-over Voltage: 75 V @ 100 V/s
- Max Impulse Spark-over Voltage: 700 V @ 1 kV/μs
- Minimum Insulation Resistance: 1 GΩ @ 50 V
- Maximum Capacitance: 4 pF @ 1 MHz
- Operating Temperature: -40°C to 70°C
- ESD/EMP Compliance: IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61643-21
Key Features
- Integrated Surge Protection: Combines power injection with robust surge mitigation to protect switches and indoor equipment from electrical damage.
- Gigabit Throughput: Fully compatible with 10/100/1000 Ethernet standards, ensuring no compromise on network data speeds.
- Broad Thermal Range: Built to operate reliably in extreme environments ranging from -40°C to 70°C.
- System Security: Designed to be used in conjunction with the MikroTik GESP unit for complete end-to-end protection, securing both the antenna mast and the ground-level network hardware.
- Easy Deployment: Compact design allows for simple installation below antenna masts or near rack-mounted equipment.
Note: For optimal performance, always ensure the device is securely connected to a proper grounding point (such as a rack, mast, or structure ground). While designed to absorb multiple surge events, it is recommended to inspect the unit following any significant electrical incidents.
