The MikroTik quickMOUNT (QM) is a versatile, low-cost wall and pole mount adapter engineered for small point-to-point and sector antennas. It can be mounted directly to a wall or used as an adapter to transition a larger-diameter pole to a smaller antenna mounting clip. Built from extremely durable anvilNITE™ composite material, it allows precise antenna alignment with a wide turning angle and supports dual-device configurations for advanced setups like repeaters.
Technical Specifications
- Product Code: QM
- Dimensions: 96 x 107.5 x 56 mm
- Tube Diameter: 35 mm
- Max Attachment Pole Diameter: 65 mm
- Maximum Antenna Weight: 1.5 kg (3.3 lbs)
- Maximum Wind Load: 100 N
- Turn Angle: 190° (for MikroTik products)
- Operational Temperature Range: ±40 ∘ C
- Material: anvilNITE™ composite material
- Compatible Devices: SXT series, OmniTik, BaseBox, and third-party pole-mountable antennas (supports simultaneous mounting of up to two SXT units)
Key Features

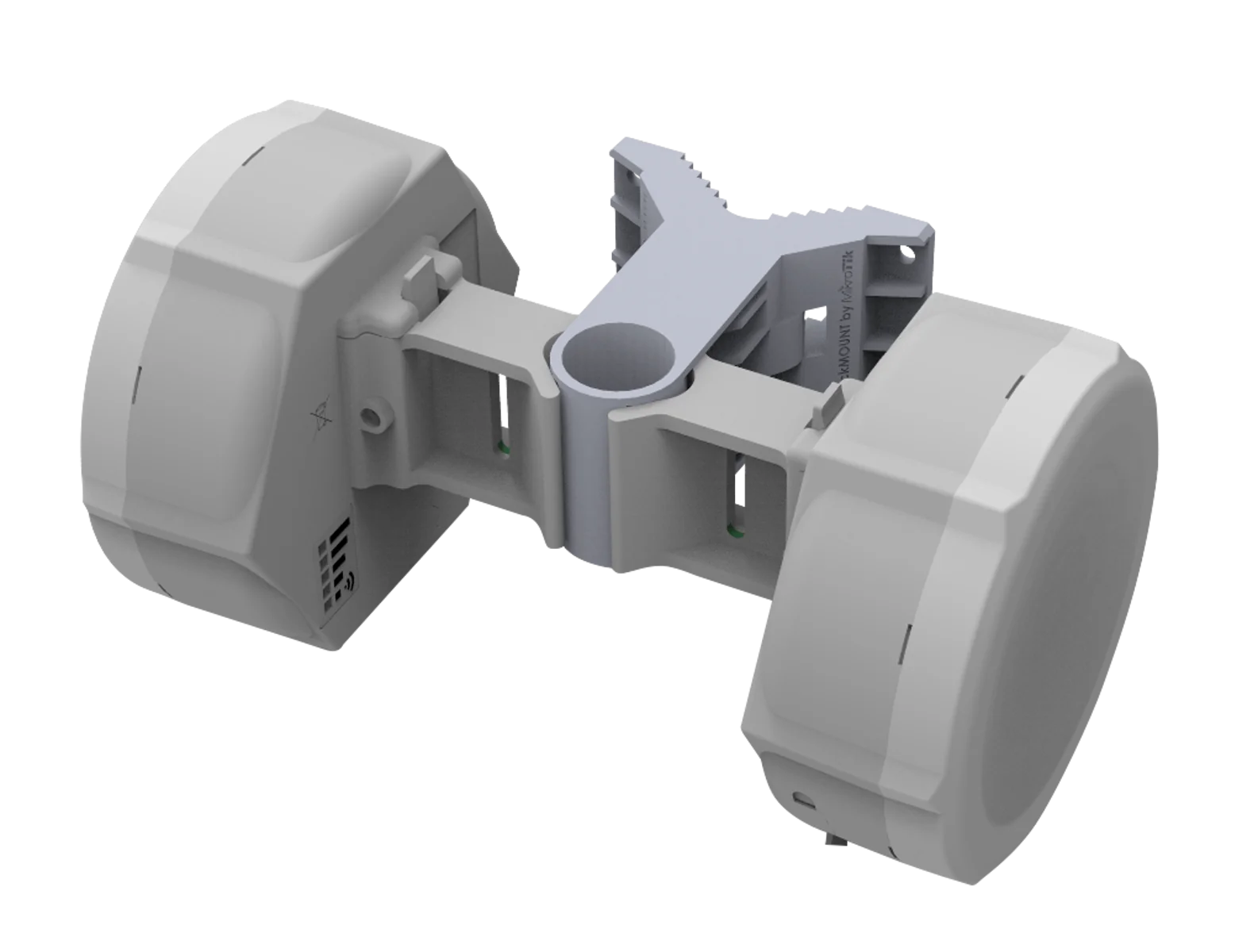

- Flexible Dual-Device Mounting: Enables the simultaneous mounting of two SXT units to easily build repeater access points or achieve wide sector coverage.
- Wide Adjustment Angle: Provides a smooth 190-degree turning radius to achieve optimal signal alignment for point-to-point links.
- Dual-Functionality Design: Functions flexibly as a direct wall mount or as a robust adapter converting large-diameter infrastructure poles to standard small-size antenna clips.
- Durable Weather-Resistant Build: Constructed from specialised anvilNITE™ composite material designed to withstand a 100 N wind load and harsh outdoor operational temperatures.
