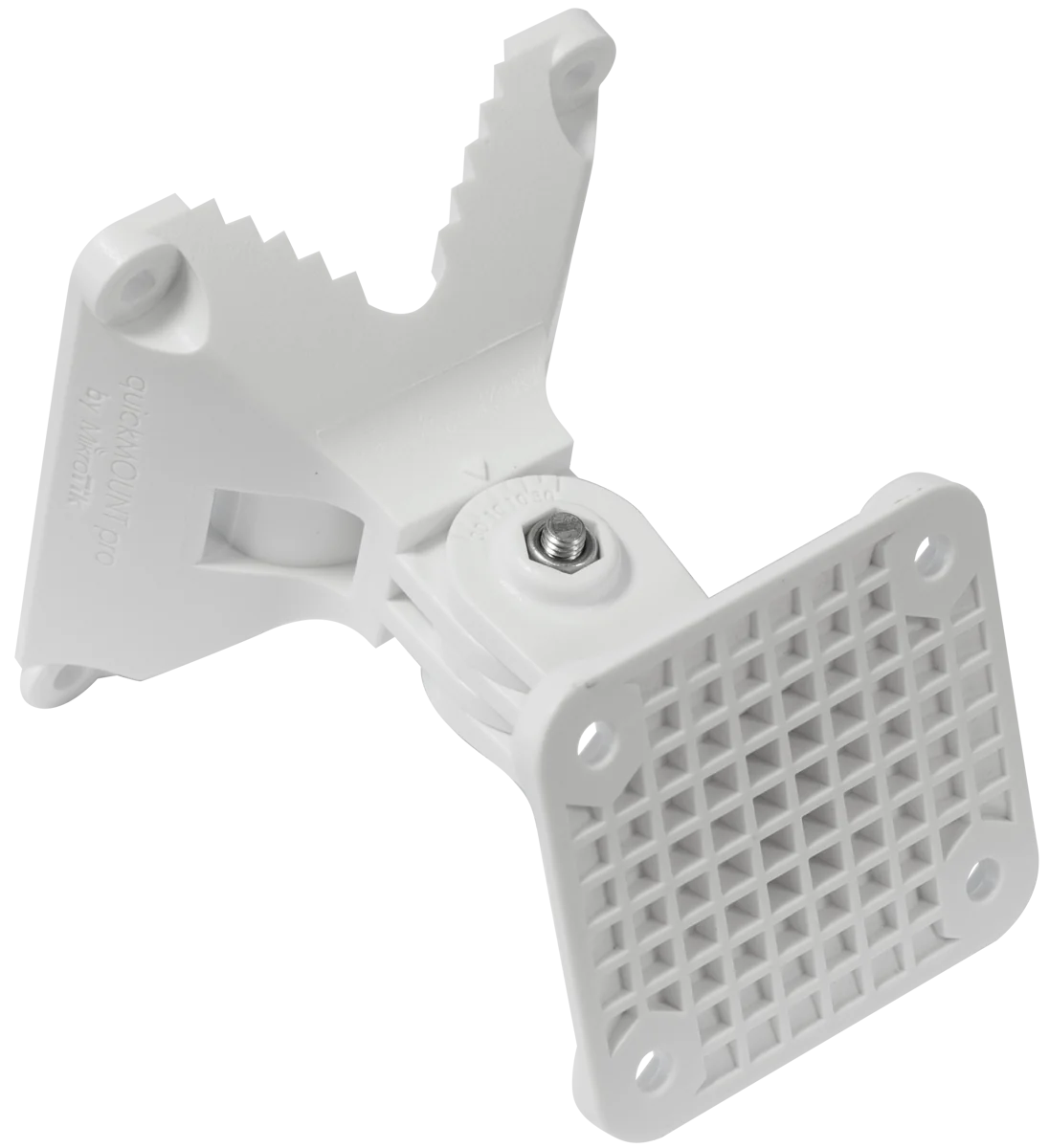

The MikroTik quickMOUNT pro LHG (QMP-LHG) is an advanced wall or pole mount adapter specifically designed for the MikroTik LHG antenna series. It provides precise control over antenna alignment, allowing for 140° of adjustment in both horizontal and vertical planes. Built with anvilNITE™, a specialised, high-durability plastic composite, this mount ensures long-lasting stability in outdoor environments.
Technical Specifications
- Product Code: QMP-LHG
- Material: anvilNITE™ (Specialised plastic composite)
- Adjustment Angles: 140° (Horizontal and Vertical)
- Dimensions: 95 x 88 x 112 mm
- Mounting Hole Pattern: 74 x 81 mm
- Tube Diameter: 35 mm
- Max Pole/Tube Diameter for Attachment: 65 mm
- Maximum Antenna Weight: 1.5 kg
- Maximum Wind Load: 100 N
- Compatibility: MikroTik LHG series antennas (excludes XL models)
Key Features
- Precision Alignment: Features an integrated graduated scale, allowing you to perfectly calibrate your antenna’s direction for optimal signal strength.
- Flexible Mounting: Designed for versatile installation, easily attaching to either walls or poles.
- Extreme Durability: Constructed from anvilNITE™, an industrial-grade material built to withstand harsh outdoor conditions.
- Advanced Articulation: Offers a wide 140° range of motion, ensuring you can find the perfect angle for your point-to-point or sector links.
What’s Included in the Box:
- 4x M6x20 button head screws
- 4x 6x30mm wall anchors
- 4x Self-tapping screws
- 4x M6 locking nuts
- 50-70mm hose clamp
