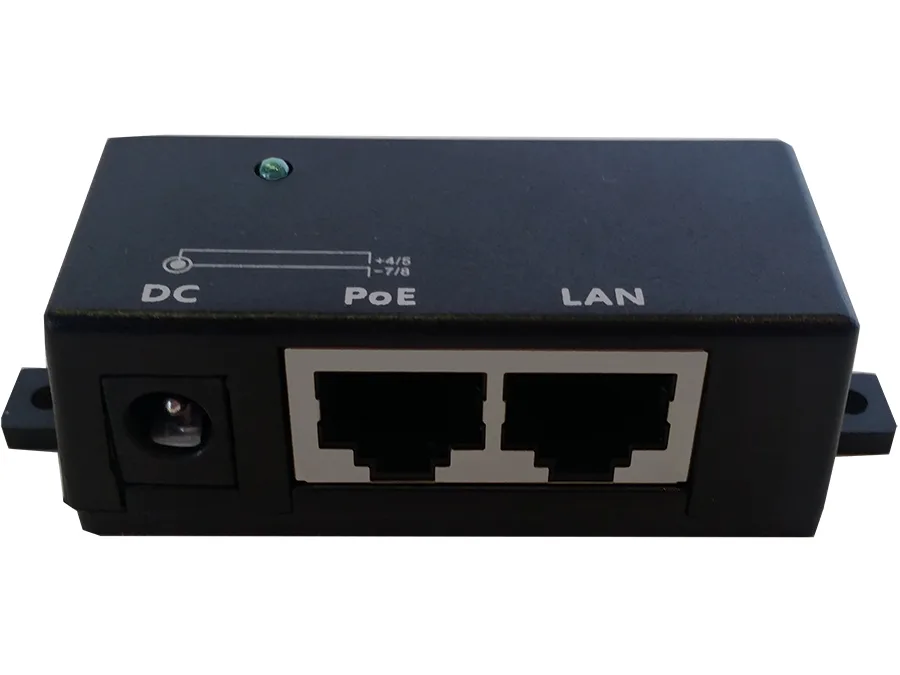

The Single Port Fast Ethernet Passive PoE Injector is a reliable and cost-effective solution designed to deliver both data and electrical power to passive PoE-enabled devices over a single Ethernet cable. Ideal for IP cameras, VoIP phones, and wireless access points, this injector simplifies installations by eliminating the need for local power outlets near your devices.
Note: Power Supply is sold separately. Please view our range of compatible power supplies.
Technical Specifications
- Model: Single Port Fast Ethernet Passive PoE Injector
- Ethernet Ports: 2 x 10/100 Mbps (1x Input, 1x Data + Power Output)
- PoE Mode: Mode B / Mid-span (Pins 4/5+; 7/8-)
- Input Voltage: 9-48V DC
- PoE Output: PoE Pass-through (Power output is determined by the connected PSU)
- Max Current Per Port: 650mA
- Operating Temperature: 0°C to 40°C
- Mounting: Wall-mountable design
Key Features
- Simplified Deployment: Combines data and power into one cable, reducing installation clutter and wiring requirements.
- Wide Voltage Support: Supports a flexible input voltage range of 9-48V DC to accommodate various device requirements.
- Compact & Durable: Designed for easy wall-mounting, making it suitable for professional and home network deployments.
- Passive PoE Standard: Provides a straightforward plug-and-play solution for passive PoE devices.
