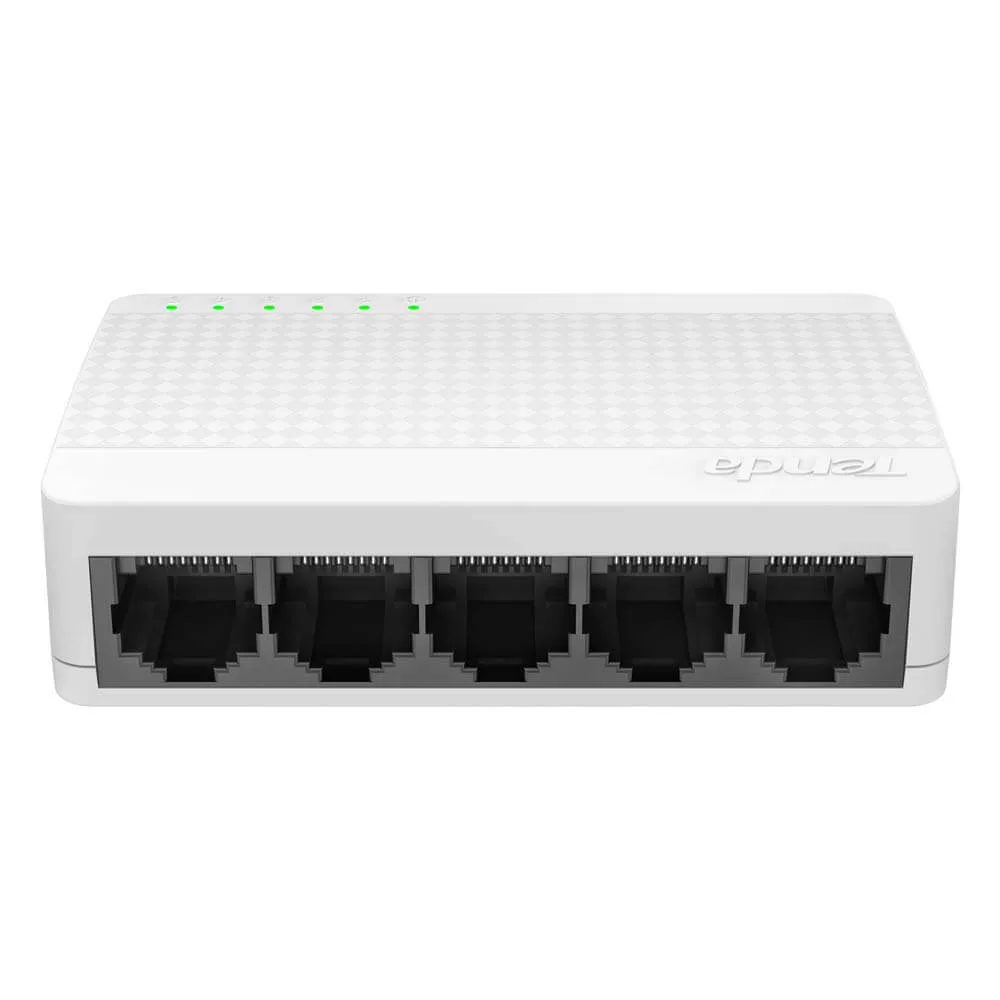

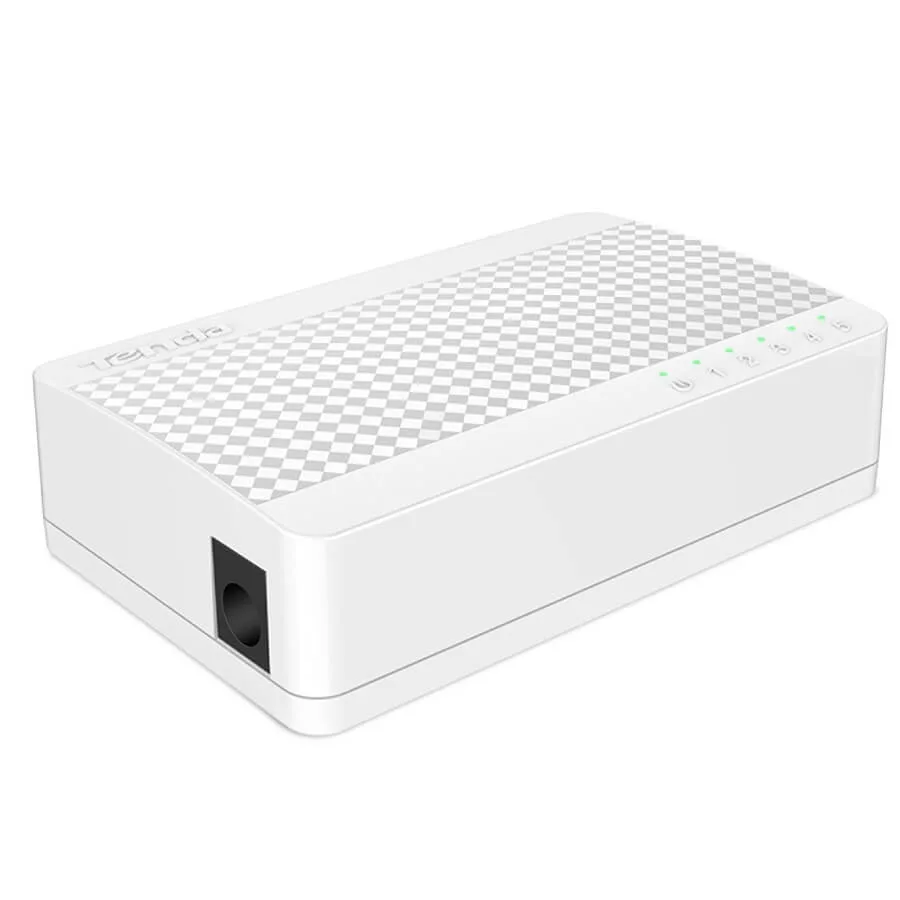

The Tenda S105 5-Port 10/100Mbps Ethernet Switch is a plug-and-play networking solution designed for seamless device expansion. Whether connecting computers, printers, smart TVs, or IP cameras, the S105 provides stable, high-speed data transmission without the need for complex configuration. Its ultra-compact, fanless design ensures silent operation and easy placement in any home or office workspace.
Technical Specifications
- Model: S105
- Interface: 5 x 10/100Mbps Auto-Negotiation RJ45 Ports (Auto MDI/MDIX)
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Transmission Media: 10Base-T (Cat 3 or better), 100Base-TX (Cat 5 UTP or better)
- Forwarding Mode: Store-and-Forward
- MAC Address Table: 1K (Auto-Learning and Auto-Aging)
- Power Supply: External Adapter (Input: 100-240V AC, 50/60Hz; Output: 5.0V 0.6A)
- Power Consumption: Max < 1.6W
- Dimensions: 8.2 x 5.2 x 2.2 cm
- Operating Temperature: 0°C to 40°C
- Certifications: CE, FCC, RoHS
Key Features
- Plug-and-Play Simplicity: No configuration required; simply plug in your Ethernet cables and power adapter to start your network immediately.
- Auto MDI/MDIX: Each port automatically detects the cable type, eliminating the need for crossover cables or manual toggling.
- Fast and Stable: Supports full-duplex rates of up to 200Mbps, ensuring reliable data flow with minimal packet loss.
- Versatile Mounting: Designed with a compact footprint and supports both desktop placement and wall-mounting.
- Quiet & Eco-Friendly: Fanless design provides silent operation; low power consumption (max 1.6W) supports an energy-efficient setup.
