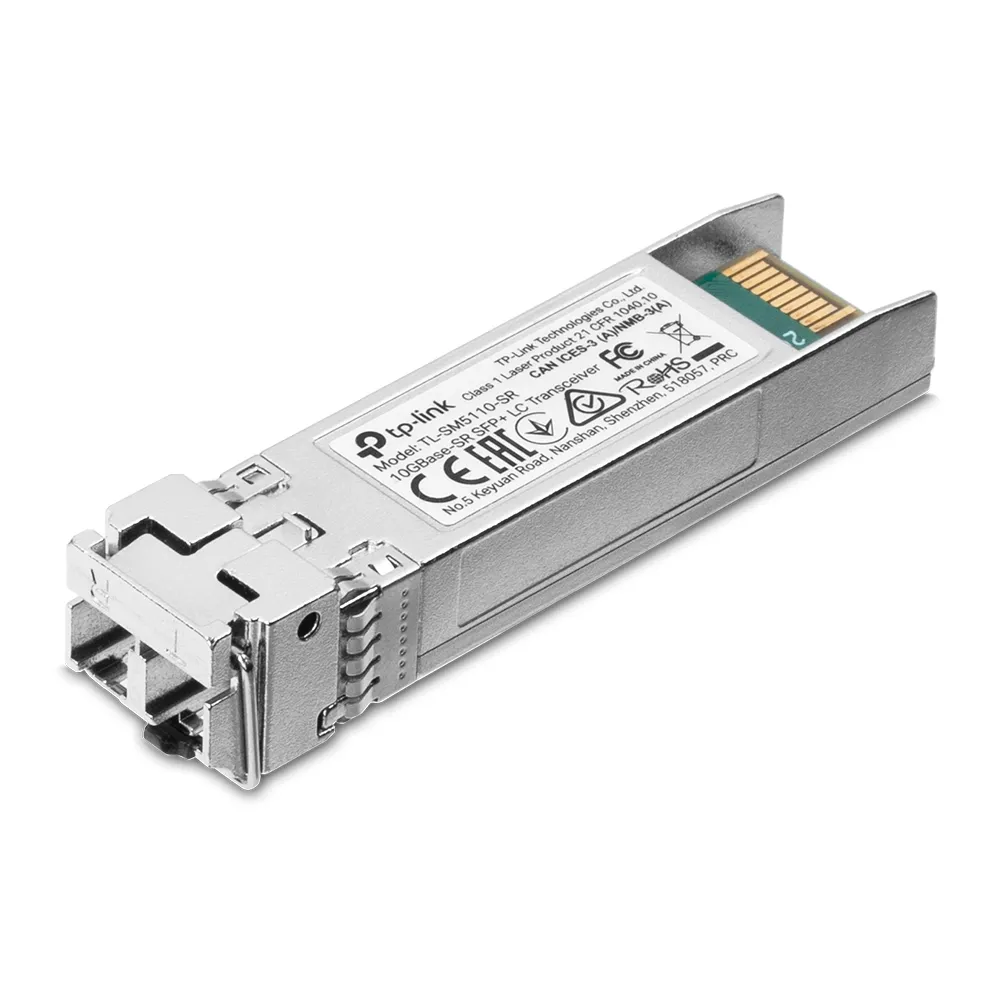

The TP-Link 10GBase-SR SFP+ LC Transceiver Multi-Mode (TL-SM5110-SR) is a high-performance 850nm multi-mode small form-factor pluggable transceiver engineered to extend 10Gbps Ethernet connectivity over fibre-optic cable infrastructure. Designed for enterprise networks, data centres, and internet service providers, this module delivers reliable, high-speed full-duplex communication.
Key Features
- High-Speed Connectivity: Supports blazing-fast 10Gbps data rates for demanding network workloads.
- Flexible Reach: Extends connections up to 300 metres using 50/125µm multi-mode fibre (OM3) cables, or up to 33 metres using 62.5/125µm multi-mode fibre cables.
- Hot-Swappable Design: Allows you to install or replace the module without needing to power down or reboot your network switch, ensuring zero downtime during upgrades or maintenance.
- Digital Diagnostic Monitoring (DDM): Supports real-time monitoring of transceiver parameters—such as optical output power, input power, temperature, laser bias current, and transceiver supply voltage—to help preemptively identify potential hardware issues.
- Industry Standard Compatibility: Fully compliant with the 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA) and IEEE 802.3ae standards, ensuring seamless compatibility across a wide range of switches (including TP-Link JetStream models like the TL-SG3428X and TL-SG3428XMP).
Technical Specifications
- Model: TL-SM5110-SR
- Standards and Protocols: IEEE 802.3ae, TCP/IP, SFF-8472
- Transceiver Type: 10GBASE-SR Multi-Mode SFP+
- Data Rate: 10 Gbps
- Wavelength: 850 nm
- Port Type: LC/UPC Duplex connector
- Fibre Type: 50/125 µ m or 62.5/125 µ m Multi-Mode Fibre
- Maximum Cable Length: 300 m (OM3 50/125 µ m) / 33 m (62.5/125 µ m)
- Power Supply: 3.3V
- Safety and Emissions: FCC, CE
Operating Environment
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
- Operating Humidity: 10% to 90% relative humidity, non-condensing
- Storage Humidity: 5% to 90% relative humidity, non-condensing
