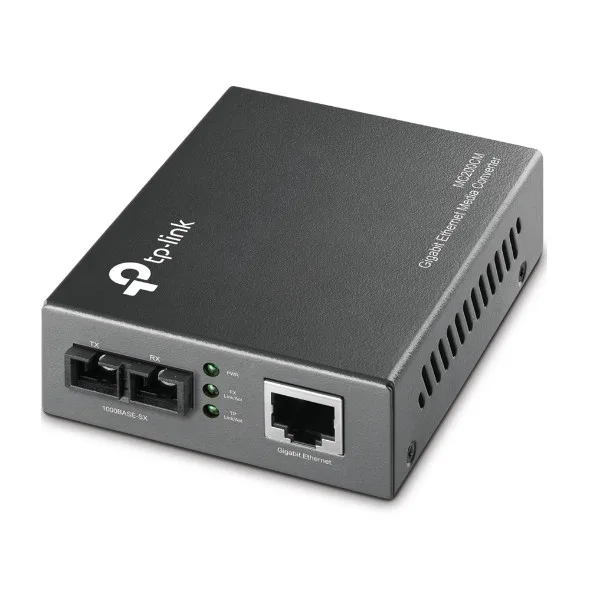

The TP-Link MC200CM is a high-performance Gigabit media converter designed to bridge 1000BASE-T copper networks with 1000BASE-SX fibre optic infrastructure. It utilises a Shortwave (SX) laser at 850nm and an SC-type connector, making it an ideal solution for extending network reach over multi-mode fibre in enterprise or professional environments.
Technical Specifications
- Model Number: MC200CM
- Interface: 1x 1000Mbps SC/UPC Fibre Port; 1x 10/100/1000Mbps RJ45 Port (Auto MDI/MDIX)
- Fibre Standard: 1000BASE-SX (IEEE 802.3z)
- Wavelength: 850nm
- Fibre Compatibility: Multi-mode Fibre (50/125µm or 62.5/125µm)
-
Max Transmission Distance:
- 550m using 50/125µm fibre
- 220m using 62.5/125µm fibre
- Standards & Protocols: IEEE 802.3ab, 802.3z, 802.3x (Flow Control)
- Dimensions: 94.5 x 73.0 x 27.0 mm
- Power Consumption: 1.66W (External Power Adapter included)
Key Features

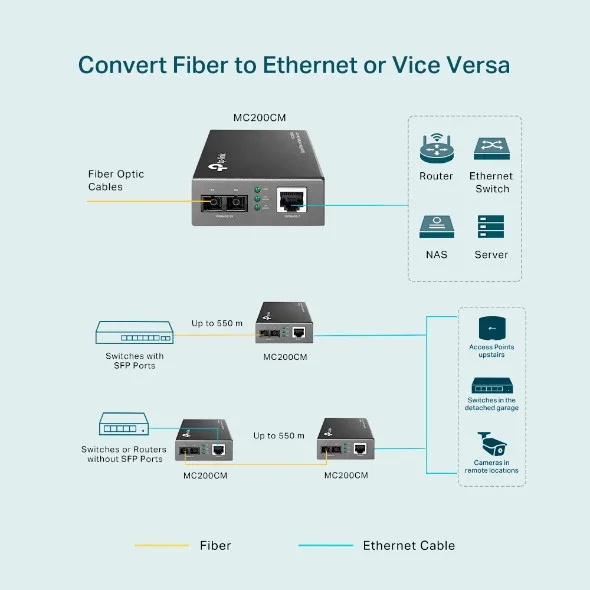

- Versatile Deployment: Can function as a standalone device or be mounted within TP-Link’s optional TL-MC1400 chassis for centralised rack-mount environments.
- Flexible Transfer Modes: Features switch configuration for Force/Auto transfer mode on the FX (fibre) port to match specific link requirements.

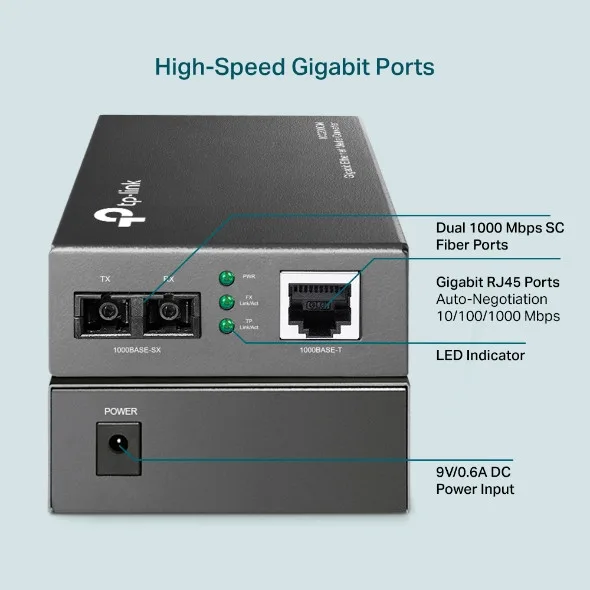

- Network Monitoring: Front panel LED indicators provide real-time status updates for Power and Link/Activity, simplifying troubleshooting.
- Auto-Negotiation: The RJ45 port supports auto-negotiation of speed and duplex modes (Half/Full), ensuring compatibility with a wide array of existing copper infrastructure.
- Environmental Resilience: Operates reliably between 0°C to 40°C with support for non-condensing humidity up to 90%.
