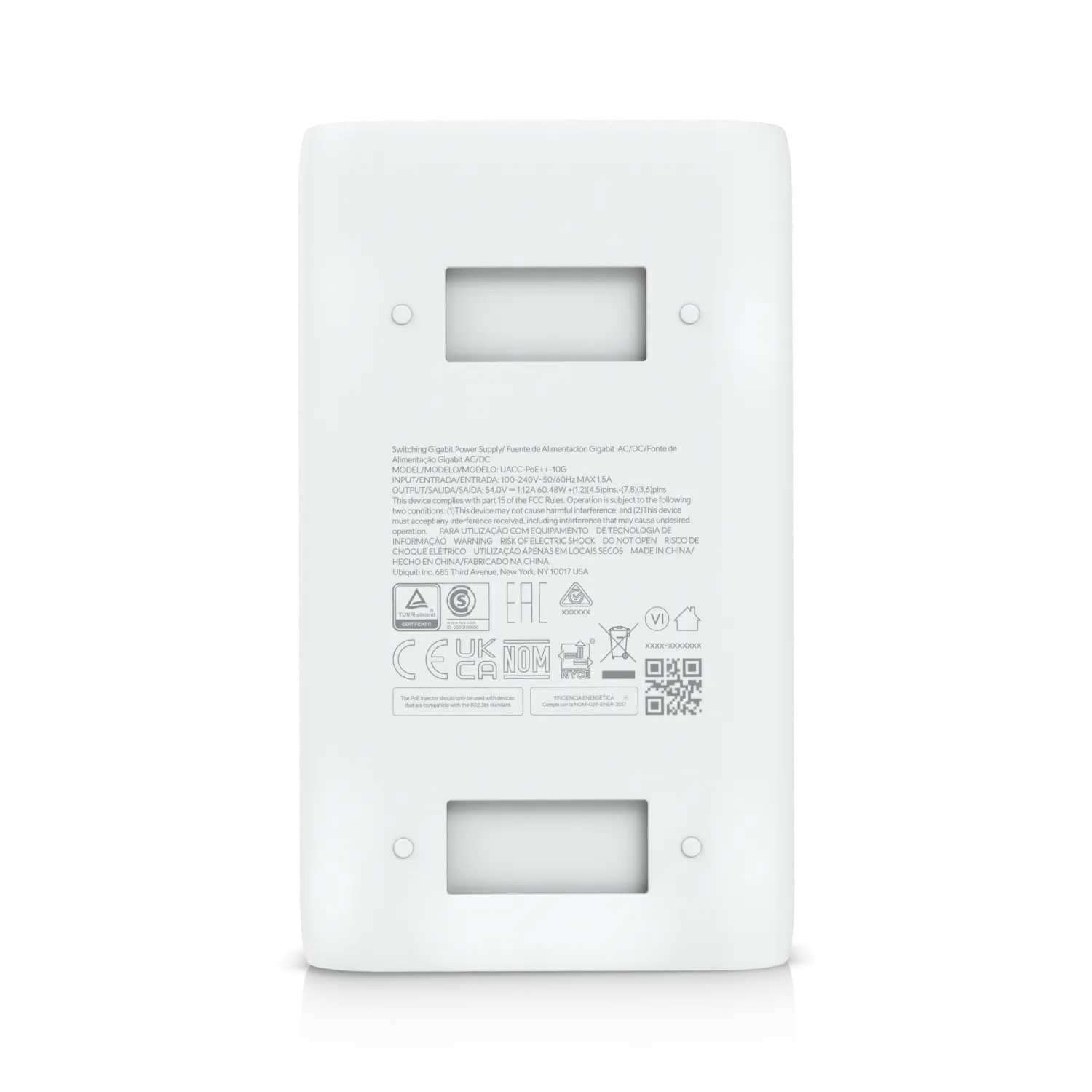

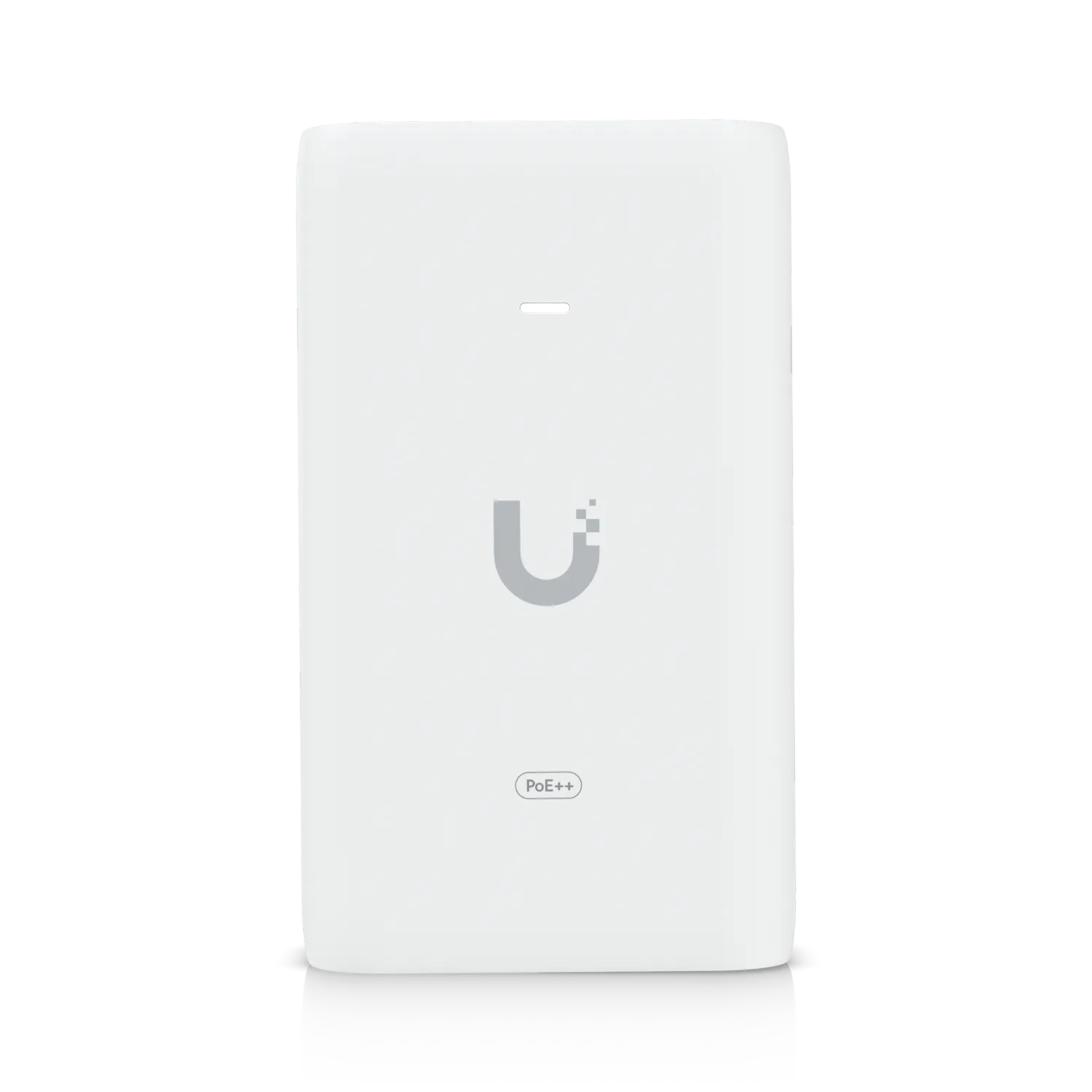

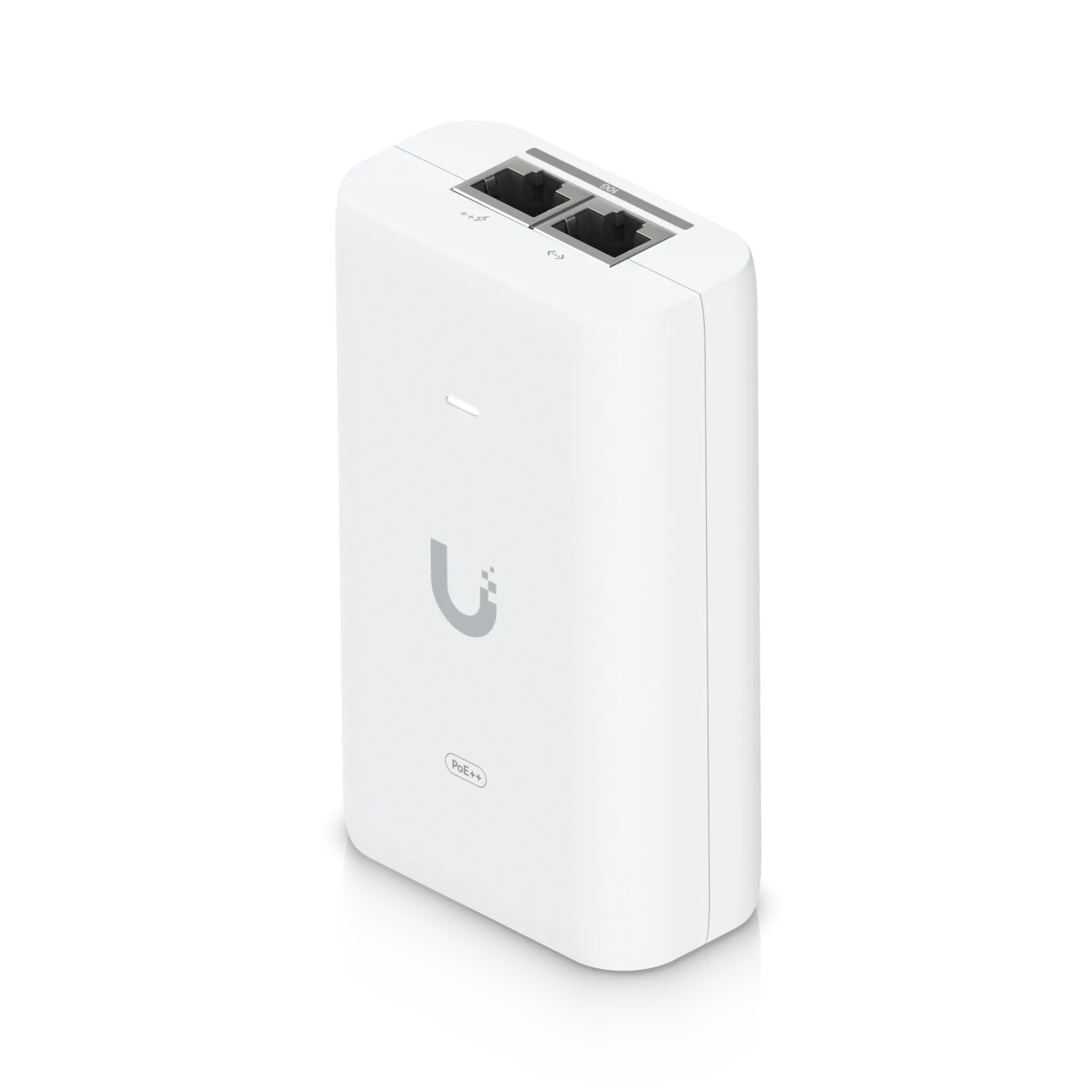

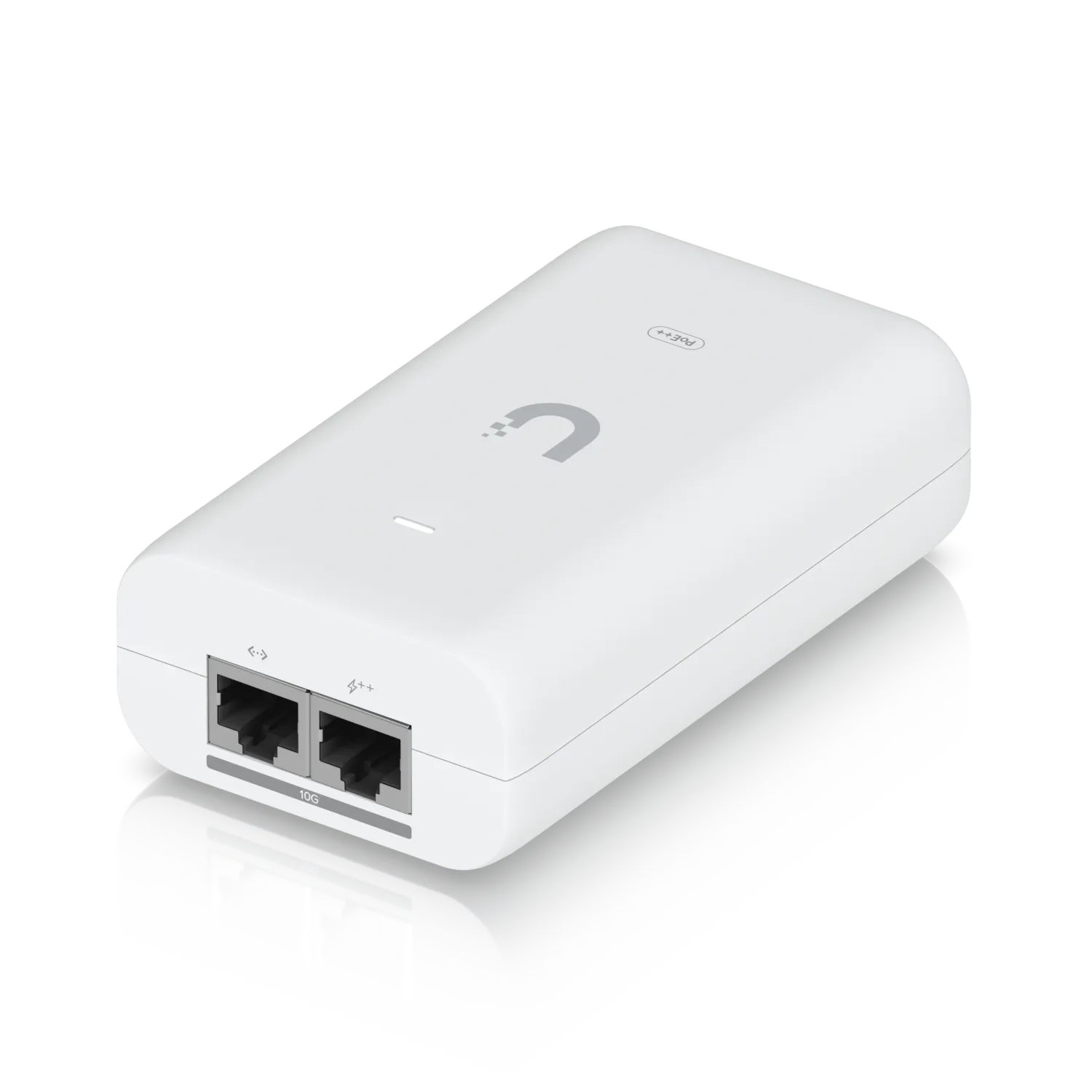

The Ubiquiti UniFi 10G PoE++ Adapter is a high-performance, multi-gigabit power injector engineered to deliver up to 60W of PoE++ power while maintaining high-speed data transmission rates up to 10 GbE. Ideal for powering demanding UniFi hardware, it reduces dependency on centralised PoE switch infrastructure while safeguarding connected equipment with robust surge and electrostatic protection.
Technical Specifications
-
- Model Number: UACC-PoE++-10G
- Output Voltage: 54V DC at 1.12A
- Max. PoE Wattage per Port: 60W (802.3bt / PoE++)
- Rated Input Voltage: 100–240V AC at 50/60Hz
- Input Current: 1.5A Max
- LAN Support: Up to 10 GbE (Gigabit LAN port)
- Powering Configuration: 4-pair powering (Pins 1, 2, 4, 5+ and 3, 6, 7, 8-)
- Interfaces: RJ45 Shielded Socket (Data In / PoE)
- Efficiency: > 88%
- Dimensions: 106 x 63 x 34 mm
- Weight: 210 g
Key Features
- Multi-Gigabit Performance: Seamlessly passes through high-speed data up to 10 Gbps, preventing bottlenecks when used with modern high-bandwidth access points, switches, and bridge hardware.
- High-Power Delivery: Supplies up to 60 watts of PoE++ output, capable of driving power-hungry UniFi devices without requiring a full switch upgrade.
- Advanced Surge Protection: Features difference and common-mode surge protection, handling max surge discharges up to 1500A (power) and peak pulse currents of 36A (data) with a sub-nanosecond response time.
- Thermal Efficiency: Built with high conversion efficiency (>88%) to minimise internal heat generation and energy waste during continuous operation.
