The Ubiquiti UACC-PoE+-2.5G is a high-efficiency 30W PoE+ adapter designed to power UniFi devices while supporting high-speed 2.5 GbE network throughput. It provides a reliable alternative to PoE switch power, featuring integrated surge, peak pulse, and overcurrent protection to safeguard your connected hardware.
Note: Power cable not included, we recommend the POWU cable.
Technical Specifications
- Model Number: UACC-PoE+-2.5G
- Output Voltage: 48V DC @ 0.65A
- Maximum Output Power: 30W
- Data Rate Support: Up to 2.5 GbE (10/100/1000/2500 Mbps)
- Input Voltage: 100–240V AC @ 50/60Hz
- Powering Method: 2-Pair (Pins 4, 5+ and 7, 8-)
- Dimensions: 93 x 62 x 35 mm
- Weight: 156 g
- Operating Temperature: 0°C to 40°C
Key Features
- High-Speed Connectivity: Enables Multi-Gigabit (2.5G) data transmission, making it ideal for modern high-performance access points like the U7-Pro and U6-Enterprise lines.
- Robust Protection: Equipped with advanced surge protection (difference and common mode), peak pulse current protection, and overcurrent protection.
- Efficient Power Delivery: Delivers a stable 30W of PoE+ power with >87% efficiency and minimal output ripple.

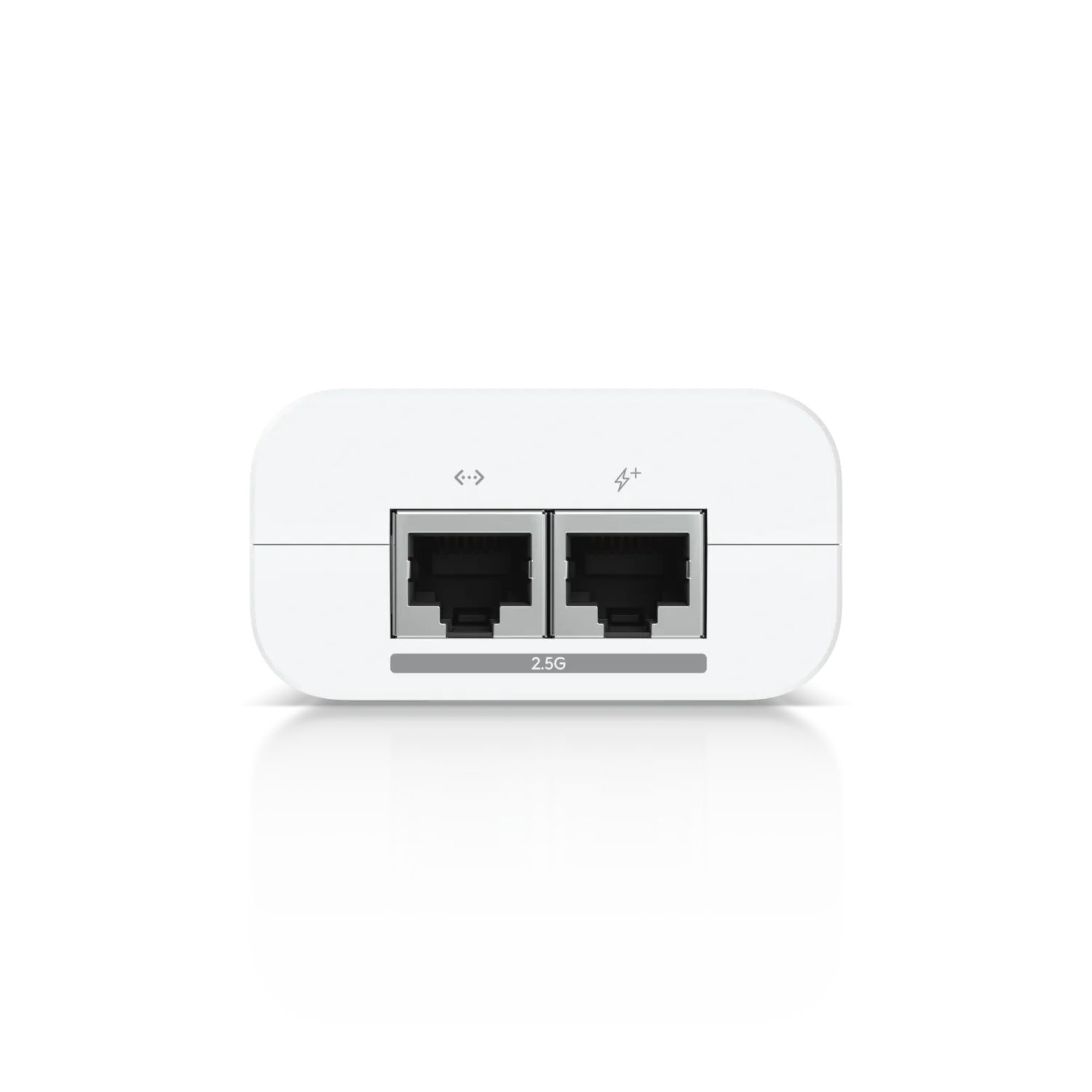

- Shielded Design: Features shielded RJ45 sockets to maintain signal integrity in demanding network environments.
- Global Compatibility: Certified for international use with CE, FCC, IC, UL, UKCA, KC, and CCC compliance.
