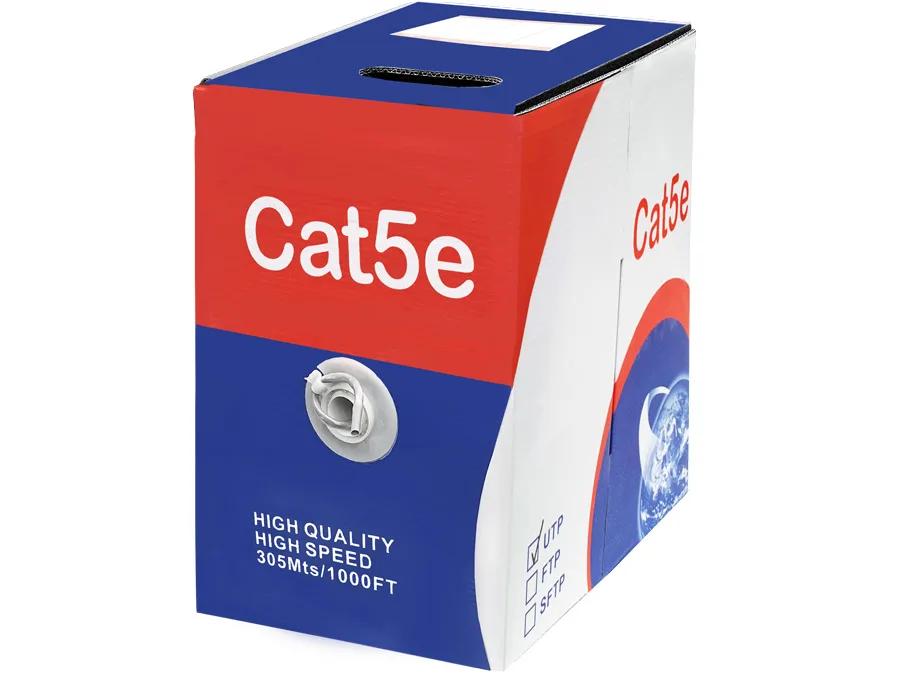

The UTP-305CU is a cost-effective 305m Cat5e UTP network cable designed for standard networking environments. This cable utilises Copper Clad Aluminium (CCA) conductors, providing an economical alternative to solid copper cabling for general data, voice, and analogue signal transmission. It is supplied in an easy-pull box for convenient installation.
Technical Specifications
- Model Number: UTP-305CU
- Category: Cat5e
- Construction: UTP (Unshielded Twisted Pair)
- Conductor Material: CCA (Copper Clad Aluminium)
- Conductor Diameter: 0.50mm
- AWG Rating: 24 AWG
- Number of Pairs: 4 Pairs (8 Conductors)
- Cable Length: 305m
- Outer Jacket Material: PVC
- Shielding/Drain Wire: None
- Cross Filter: None
Key Features
- Cost-Effective Solution: Engineered as an affordable networking option for installations where the higher cost of solid copper is not required.
- Easy-Pull Packaging: Supplied in a 305m box designed to prevent tangling and facilitate smooth, efficient deployment.
- Standard Gauge: Utilizes 24 AWG conductors, consistent with standard Cat5e specifications for signal compatibility.
- Versatile Application: Ideal for various indoor LAN applications, including high-speed data, digital and analogue voice, and video signal transmission.
Important Note regarding CCA Cabling:
Please be aware that this cable uses Copper Clad Aluminium (CCA) conductors. CCA has a higher DC resistance than pure solid copper cable and is generally not recommended for Power over Ethernet (PoE) applications or long-distance high-bandwidth runs, as it may result in increased heat buildup and signal attenuation.
