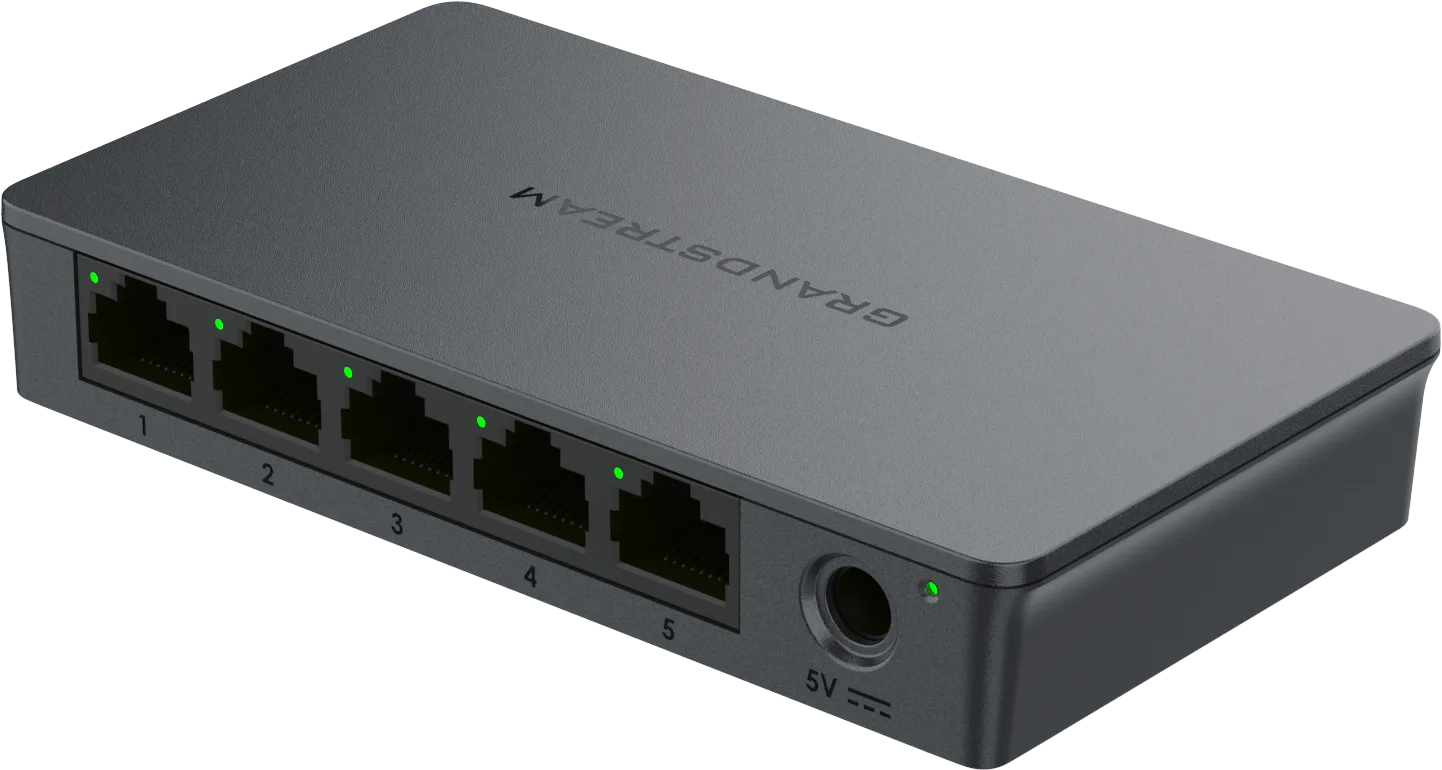

The Grandstream GWN7700 is a high-performance, 5 port Gigabit unmanaged network switch designed to provide quick, cost-effective, and reliable connectivity for home offices and small-to-medium-sized businesses. With a plug-and-play design, it requires no complex configuration or software installation, making it an ideal “set-and-forget” solution for expanding your local network. Its compact, fan-less construction ensures silent operation and easy mounting on either a desktop or a wall.
Technical Specifications
- Model Number: GWN7700
- Interface Type: 5 x 10/100/1000 Mbps RJ45 Ports
- Switching Capacity: 10 Gbps
- MAC Address Table: 2K
- Jumbo Frame: 9 KB
- Enclosure Material: Plastic
- Mounting: Desktop / Wall-Mount
- Standards & Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p
Key Features
- Plug-and-Play Simplicity: Instantly expand your network connectivity for computers, printers, and other devices without any manual setup.
- Intelligent Auto-Negotiation: Each port automatically detects the link speed of connected devices (10/100/1000Mbps) and adjusts for optimal performance.
- Auto MDI/MDIX: Eliminates the need for crossover cables, ensuring compatibility with all standard Ethernet cables.
- Efficient Traffic Management: Features IEEE 802.3x Flow Control to manage heavy network activity and built-in QoS (Default Strict Priority) to prioritise critical traffic.
- Eco-Friendly Design: Integrated “Green technology” reduces power consumption, with a maximum base system power usage of approximately 1.7W.
- Advanced Monitoring: Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) helps monitor and manage traffic levels during peak usage.
