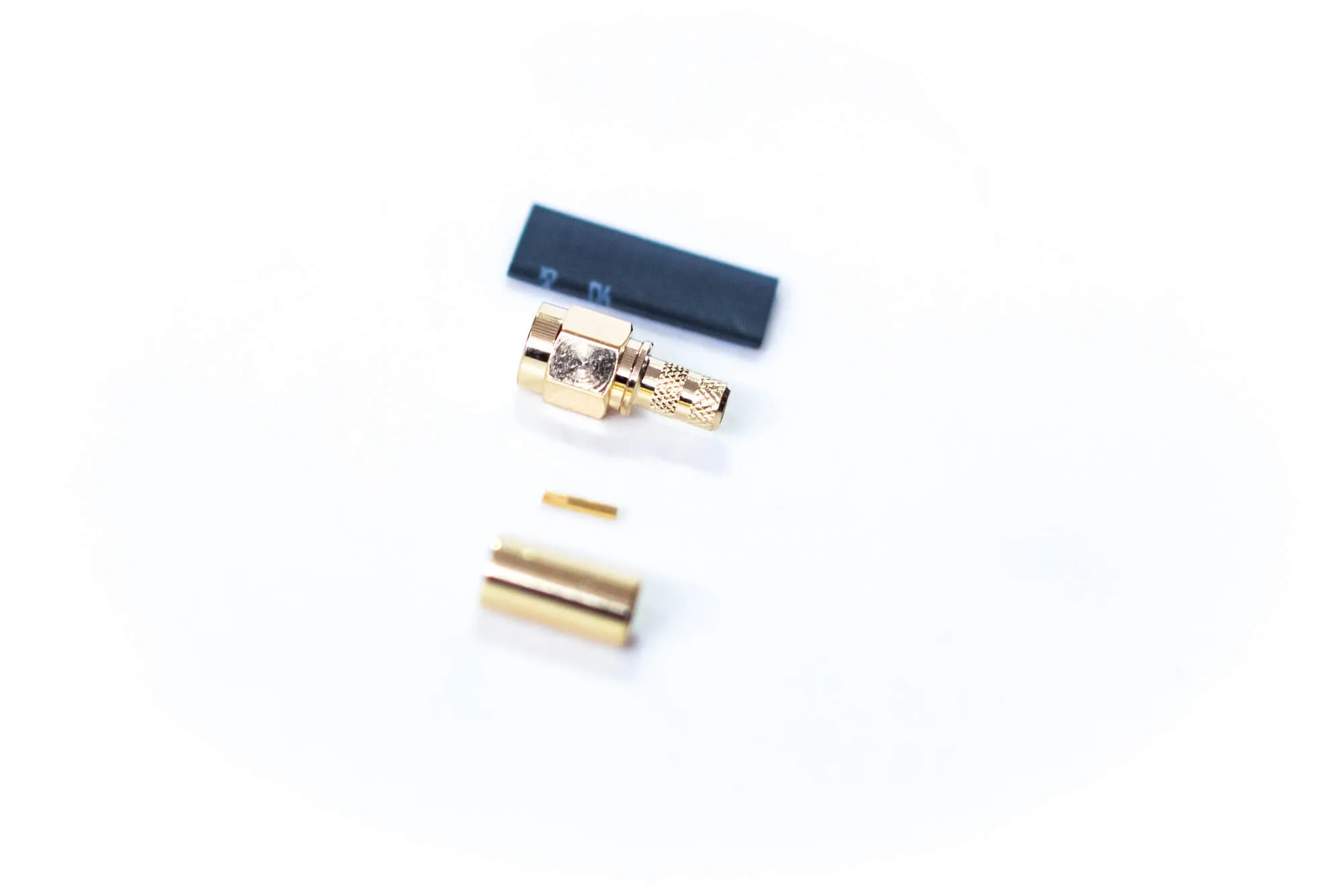

The SMA01-RP is a high-performance, reverse-polarity male (plug) connector specifically engineered for termination with 195-series low-loss coaxial cables (such as ARF195). Designed for 50-ohm RF systems, this connector provides a secure, precision-machined interface for wireless access points, antennas, and other critical RF equipment. It ensures optimal signal integrity and minimal transmission loss in demanding network environments.
Technical Specifications
- Connector Type: SMA Male Reverse Polarity (RP-SMA Plug)
- Cable Compatibility: 195-Series Coaxial Cable (e.g., ARF195, LMR-195)
- Impedance: 50 Ohms
- Body Material: Precision-machined Brass (typically Gold or Nickel plated)
- Dielectric Material: PTFE (Polytetrafluoroethylene)
- Center Contact: Gold-plated Brass/Beryllium Copper
- Termination Style: Crimp (standard for 195-series)
- Frequency Range: DC to 6 GHz (standard for typical 195-series applications)
- Coupling Mechanism: Threaded (5/16″ hex nut)
Key Features
- Reverse Polarity Interface: Features a centre socket instead of a standard pin, specifically designed to comply with regulatory requirements for Wi-Fi and wireless networking equipment.
- Optimised for Low-Loss Cable: Specifically tailored for the physical dimensions of 195-series cable to ensure a robust, low-VSWR connection.
- Durability: Engineered for high mating cycles (typically 500+) with a rugged, vibration-resistant design suitable for professional installations.
- Signal Integrity: Maintains consistent 50-ohm impedance, minimising signal reflection and insertion loss at high frequencies.
