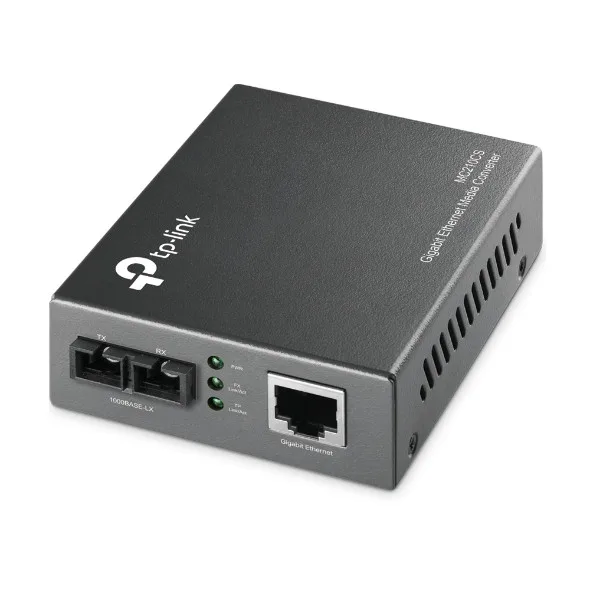

The TP-Link MC210CS is a high-performance Gigabit Ethernet media converter designed to bridge the gap between 1000BASE-T copper and 1000BASE-LX/LH fibre optic networks. It enables seamless network extension over single-mode fibre, making it an ideal solution for large campuses, enterprise backbones, and data centre connectivity. Engineered for reliability, it supports full-duplex operation and plug-and-play deployment.
Technical Specifications
- Model Number: MC210CS
- Interface (Fibre): 1x 1000Mbps SC/UPC Port (Single-Mode)
- Interface (Copper): 1x 10/100/1000Mbps RJ45 Port (Auto MDI/MDIX)
- Standards: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
- Fibre Type: 9/125µm Single-mode
- Wavelength: 1310nm
- Transmission Distance: Up to 15km
- Duplex Mode: Full-Duplex (1000Mbps)
- Power Supply: External Power Adapter
Key Features
- Seamless Conversion: Converts 1000BASE-LX/LH fibre to 1000BASE-T copper media or vice versa.
- Long-Distance Transmission: Extends network reach significantly over single-mode fibre, providing a stable, high-speed connection for remote network nodes.
- Auto-Negotiation: The RJ45 port features auto-negotiation and supports Auto MDI/MDIX, eliminating the need for manual crossover cables.
- Flexible Deployment: Can be used as a standalone desktop device or installed into a TP-Link 19” system chassis for rack-mount environments.
- Real-Time Monitoring: Integrated front-panel LED indicators provide immediate status updates for Power, Link, and Activity.
