The Ubiquiti NanoStation Loco M5 is a compact, cost-effective 5 GHz airMAX CPE designed for high-performance outdoor wireless bridging and connectivity. It features a robust, UV-stabilised enclosure and integrates a 13 dBi dual-linear polarised antenna array, making it an ideal solution for reliable point-to-point or point-to-multipoint wireless links.
Technical Specifications
- Model Number: LocoM5
- Interface Type: 1 x 10/100 Mbps RJ45 Ethernet Port
- Processor: Atheros MIPS 24KC, 400 MHz
- Memory: 32 MB SDRAM, 8 MB Flash
- Wireless Standard: 802.11a/n (airMAX)
- Frequency Range: 5170–5875 MHz (Varies by region)
- Antenna Gain: 13 dBi
- Polarisation: Dual-Linear
- Power Method: Passive Power over Ethernet (Pairs 4, 5+; 7, 8 return)
- Supported Voltage Range: 22–27V DC
- Max. Power Consumption: 5.5 W
- Operating Temperature: -30 to 75° C (-22 to 167° F)
- Enclosure Material: Outdoor UV-Stabilised Polycarbonate
Key Features
- Efficient Throughput: Delivers up to 150+ Mbps real outdoor throughput utilising 2×2 MIMO technology.
- Integrated airMAX Protocol: Uses TDMA protocol to improve latency, throughput, and scalability in outdoor environments compared to standard Wi-Fi protocols.
- Compact & Rugged: Designed for harsh outdoor conditions with an IP-rated, UV-stabilised plastic enclosure and shock/vibration certification (ETSI300-019-1.4).

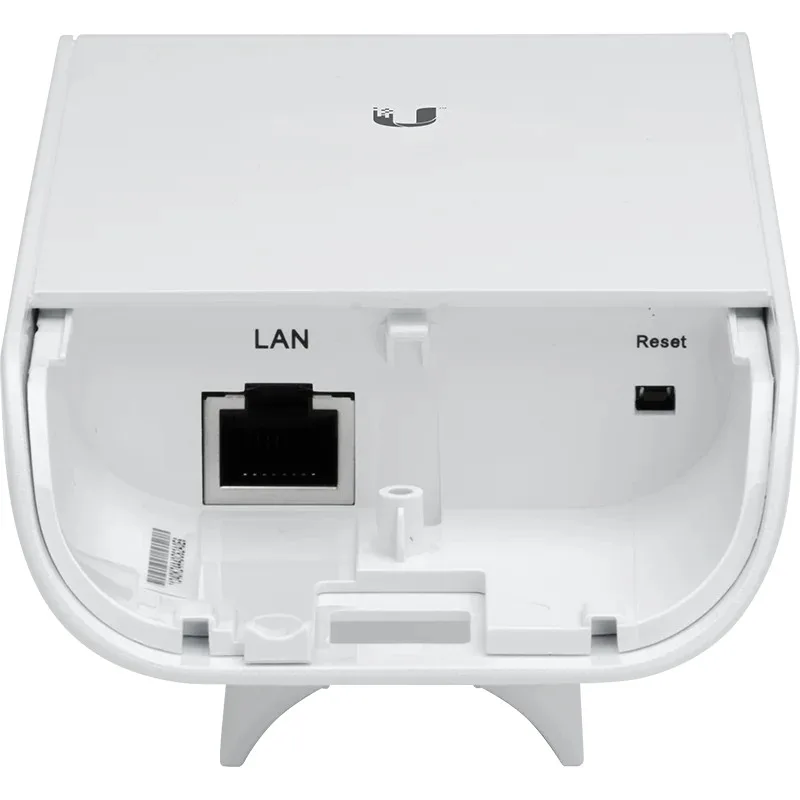

- Remote Management: Features remote hardware reset circuitry, allowing the device to be power-cycled or reset from the PoE injector location.
